- Overview
Overview

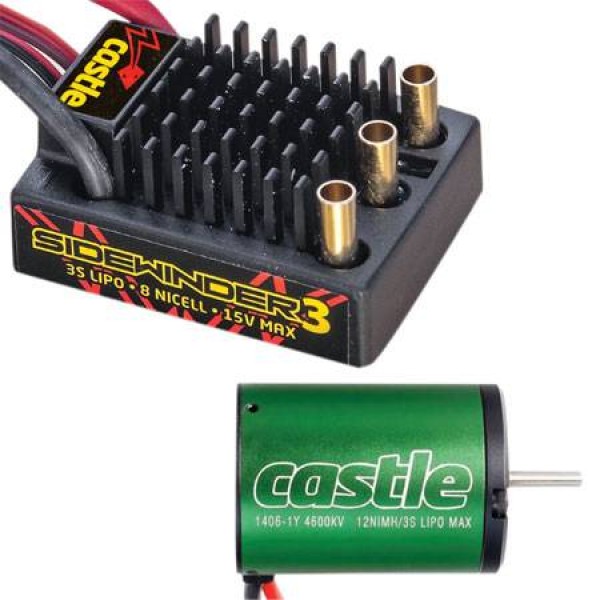

The Sidewinder 1/10th scale ESC is intended for use with the Castle 4600 KV motor up to 3S (12 Cell NiMH) and the long time favorite Castle 5700 with 2S Lipo (8 cell NiMH) MAX. Castle’s incredible CM-36 4600 kV and 5700 kV motors are made to exacting specifications and offer some of the best electromagnetic efficiencies of any motors on the RC market.
Includes:
- Sidewinder SV3 12V ESC with 13 gauge Battery Wires with Pre-Tinned Leads
- 4mm Female Bullets for Motor Connection
- Receiver Connector
- On/Off Switch
- Instructions
- 4600kV 1406 series Brushless Motor 4mm Male Bullet Connectors
- ESC:Specs
Input Voltage: 2S LiPo minimum, 3S LiPo maximum, 9 cell NiCd/NiMH
Brake: Proportional
Reversible: Yes, with lockout
Dimensions: 1.93 x 1.48 x 0.79" (49 x 38 x 20mm)
Weight: 1.96 oz (55.5 g) with 5" (127mm) long battery wires and no
battery connector
- Motor:
kV Rating: 4600
Can Length: 1.9" (49mm)
Can Diameter: 1.4" (36mm)
Shaft Diameter: 1/8" (3.2mm)
Weight: 5.9 oz (169.5 g)
Connector: 4mm gold
Wire Length: 9.5" (241mm)- Specs
Product Specifications
Part Number CSE010011501 - ESC Input Voltage 2S LiPo minimum, 3S LiPo maximum, 9 cell NiCd/NiMH Brake Proportional Reversible Yes, with lockout Dimensions 1.93 x 1.48 x 0.79" (49 x 38 x 20mm) Weight 5.9 oz (169.5 g) - Motor kV Rating 4600 Can Length 1.9" (49mm) Can Diameter 1.4" (36mm) Shaft Diameter 1/8" (3.2mm) Connector 4mm gold Wire Length 9.5" (241mm) - Reviews
