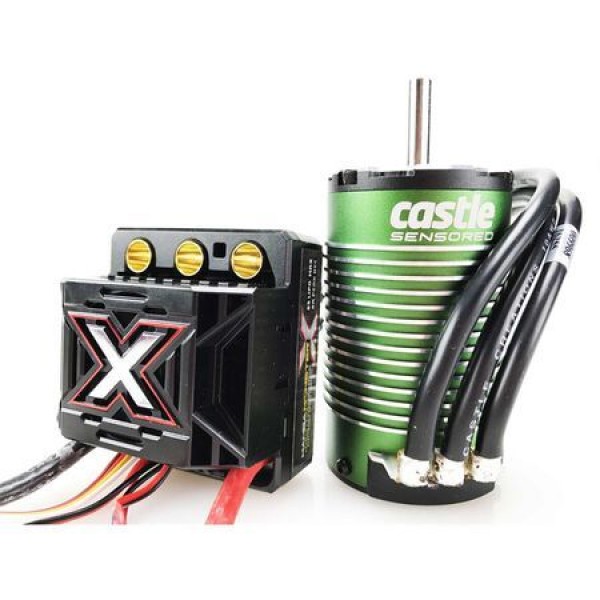

Castle Creations Mamba Monster X 25.2V ESC, 8A Peak BEC &1515-2200kV V2 Brushless Sensored Motor

Our Mamba Monster X ESC and 1515-2200Kv V2 are paired together and perform incredibly in monster trucks with up to 6S LiPo packs (4S LiPo is the sweet spot), and works great in 1:8 scale buggies, truggies and on-road vehicles as well as 1:10 scale monster trucks weighing up to 15 lbs. You will have all the power your 1:8th scale vehicle demands with the smoother throttle control of a sensored motor. Mamba Monster X takes Castle’s legendary “monster” performance to a whole new level.

New 1515-2200Kv V2 motor now included! Our commitment to excellence drives us to refine the user experience, optimize performance, and ensure that every aspect of our products are meticulously designed to provide the utmost satisfaction. Let's face it, even the best products have room for refinement, which is why we are excited to introduce the newly redesigned 1515-2200Kv V2, a new spin on one of the most popular motors we've ever produced! The transformation has included several improvements, most contributed by new stator and rotor assembly upgrades that, in turn, allow for even HIGHER EFFICIENCY, REDUCED TEMPERATURES, AND SMOOTHER START-UPS!

• MAMBA MONSTER X FEATURES:
• Selectable 5.5V or 7.5V (6A peak) internal BEC (Battery Eliminator Circuit)
• Housed in a durable injection molded case and potted in Waterproof epoxy to protect the electronics and promote efficient heat transfer
• Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters
• Data Logging to capture and record performance data from your vehicle
• Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
• Convenient Transmitter programming for six common adjustable settings including cutoff voltage and drag brake
• SMARTSENSE™ uses the motor’s sensors at startup to provide cog-free starts, excellent torque and low-speed drivability
• Auxiliary Wire Functionality allows for “on-the-fly” adjustments such as max Power and max Brake
• Proudly designed, assembled and supported in Kansas USA and backed by Castle Creations' 1-Year Warranty
• 1515-2200 V2 MOTOR FEATURES:
• Redesigned stator and rotor assemblies to improve magnetic flux.
• Reduced magnetic cogging, producing less residual drag brake.
• Increased efficiency, resulting in lower temperatures and longer run times.
• Smoother start-up, reducing cogging or stuttering when starting from a stop.
• Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly.
• High-Strength Kevlar wrap and 180C grade neodymium sintered magnets
• Oversized NMB bearings and high-temperature, high-purity copper windings
• High performance 0.2mm steel lamination stacked stator
• Oversized, low-resistance, gold-plated solder tabs
• Sensor board with high quality temperature stabilized sensors
• T6 aluminum CNC-Machined front/rear end bell
• Proudly designed and supported in Kansas, USA.

- ESC -
Input voltage range: 2S-6S LiPo
Length: 2.09" (53mm)
Width: 1.93" (49mm)
Height: 1.44" (36.4mm)
Weight: 3.92 oz. (111.g)
On/Off Switch: Yes
Cooling Fan: Yes, factory equipped (30mm), fully removable**
Connector: 6.5mm female bullets for motor connection.
Wire Gauge: 8AWG
Telemetry Link Capable: Yes, with Castle Creations Telemetry Link for S.BUS2 and Futaba T4PX and T7PX, T7PXR Transmitters
- Motor -
Application: Ideal for 1:8 scale buggies, truggies, on-road vehicles and 1:10 scale monster trucks up to 15lbs.
Input Voltage Range: 2-6S LiPo
Kv Rating: 2200Kv
Max. RPM: 60.000
Diameter: 40mm (41.4mm with fins)
Length: 3.99" (101.2mm)
Shaft Size: 20mm(Length), 5mm(Diameter)
Weight(w/wires): Approx. 429g / 15.1oz; 380g without wires.
Mounting Hole Specifications: (Holes) 4mm & 3mm / (Spacing) 25mm
Connectors: 6.5mm male Castle Bullet Connectors, include 210mm length sensor wire.
