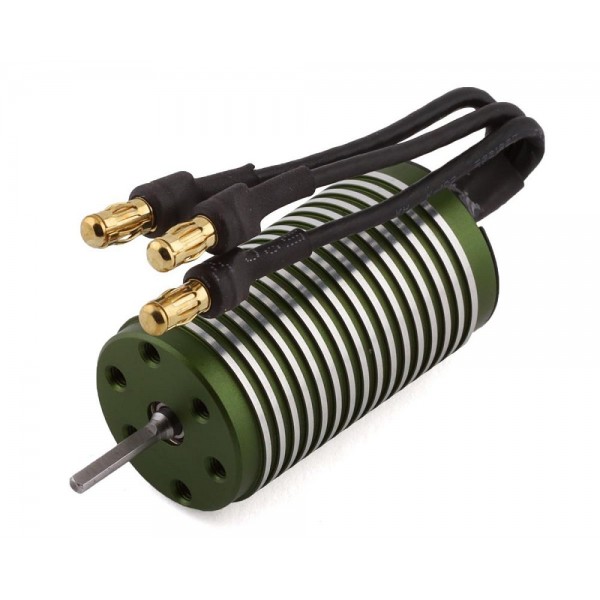

Castle Creations 0808 Inrunner 4-Pole 1/18 8200KV Brushless Motor

Overview

Overview

Castle Creations 4 pole 0808 series motors are intended for on-road and off-road applications running up to 2S LiPo and weighing in at up to 1.5lbs. 0808 motors are available with in combos with both of our race-proven Micro ESCs. For 2WD and lighter 4WD vehicles (<1.25lbs) we recommend the Sidewinder Micro 2, and for heavier 4WD vehicles (<1.5lbs) the Mamba Micro X is recommended. The 0808 series motors delivers tremendous performance for an extremely affordable price.

Notes:

Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo).

Specs

Product Specifications

Part Number	CSE060-0039-00
Input Voltage Range	2S LiPo, 4-7 cell NiMH
Kv	8200
Max. RPM	N/A
Length	1.5" (38mm)
Diameter	0.79" (20mm)
Weight (w/wires)	1.8 oz. (50g)
Shaft Diameter	0.08" (2mm)
Mounting Hole Specifications	2.5mm @ 1/2", 14mm, 5/8"
Cooling Fan	No
Connectors	3.5mm gold connectors (female connectors included)
Items Needed for Operation	You must add the connector of your choice to the battery leads. Castle recommends a high current connector rated for at least 40 amps.
Product Use Statements	Max. operating temperature = 180°F (82°C)
Application Guidelines	Up to 2S LiPo and weighing in at up to 1.5lbs. Not intended for 1/16th scale or 1/14th scale vehicles (IE Losi Mini-8ight/T, Traxxas Mini E-Revo)
Recommended ESC(s)	Mamba Micro X, Sidewinder Micro 2
Max. Recommended Vehicle Weight	1.5lbs
