Overview

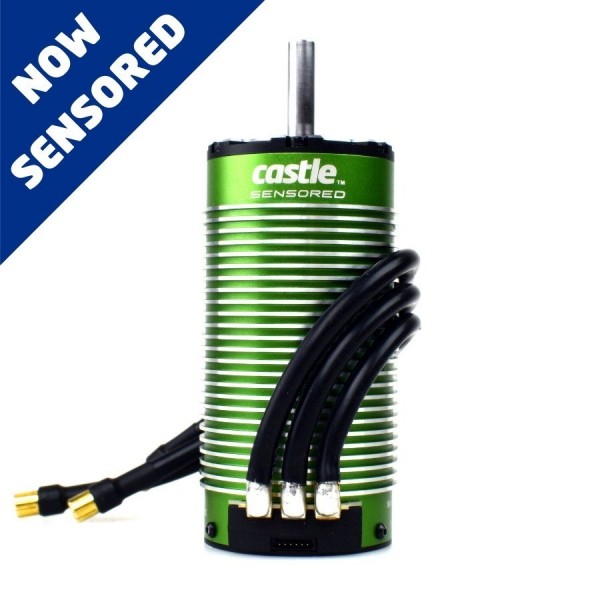

The Castle 2028 Extreme 800KV motor now has an IMPROVED 4-POLE 12-SLOT design that boasts exceptional EFFICIENCY and produces LESS HEAT. If you need LARGE-SCALE POWER for LARGE-SCALE VEHICLES the new BRUSHLESS SENSORED 2028-800KV motor will no doubt hold up to the heavy throttle and extended usage that 1/5th scale vehicles like the Losi 5IVE-T, 5IVE-B or DBXL-E encounter. It is the perfect upgrade for any 1:5 scale RC hobby vehicles (including gas to electric conversions) weighing up to 30 lbs for 2WD and 25 lbs. for 4WD. The 2028 Extreme can easily run in the 10 horsepower range*
Without a robust and reliable design, efficiency will only go so far. RC enthusiasts love pushing their equipment to the edge. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction of our motor required careful component selection; each verified through internal testing to ensure the HIGHEST EFFICIENCY possible. In the end, the result is a motor with unmatched quality, performance, and reliability. We wouldn’t put our name on anything less.Notes:
Product Use Statements: Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180°F on the motor or ESC.
Application Guidelines: The 2028-800KV is a water resistant design. The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommends applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions.features
- Running modes include Sensored and an ULTRA-EFFICIENT sensorless mode.
- High-strength, high-temperature grade neodymium sintered magnets combined with High-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions.
- Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible.
- Our proprietary winding techniques allow us to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor.
- Dual sensor ports to ensure optimal installation in your large-scale vehicle.
- Updated modern and sleek design; looks as cool as it performs.
Input Voltage Range: 12S MAXSpecs
Kv: 800
Max. RPM: 45,000
Minimum Input Voltage: 3S
Maximum Input Voltage: 12S
Sensored Capable: Yes
Can Length: 4.4" (113.2mm)
Can Diameter: 2.2" (57mm)
Weight (w/wires): 44 oz./1.25kg
Shaft Size: Length: 30mm
Diameter: 8mm
Mounting Hole Specifications: 4mm holes @ 30mm spacing.
Cooling Fan: Available, but not included. See 011-0019-00 here.
Connectors: 8.0mm male connectors
Recommended ESC: Mamba XL X
Running modes: Sensorless and Sensored
Max. Recommended Vehicle Weight: 4WD vehicles weighing less than 25lbs. 2WD vehicles weighing less than 30lbs.- Specs
Product Specifications
Part Number CSE060-0083-00 Input Voltage Range 12S MAX Kv 800 Max. RPM 45,000 Minimum Input Voltage 3S Maximum Input Voltage 12S Sensored Capable Yes Can Length 4.4" (113.2mm) Can Diameter 2.2" (57mm) Weight (w/wires) 44 oz./1.25kg Shaft Size Length: 30mm Diameter 8mm Mounting Hole Specifications 4mm holes @ 30mm spacing. Cooling Fan Available, but not included. See 011-0019-00 here. Connectors 8.0mm male connectors Recommended ESC Mamba XL X Running modes Sensorless and Sensored Max. Recommended Vehicle Weight 4WD vehicles weighing less than 25lbs. 2WD vehicles weighing less than 30lbs. - Reviews
