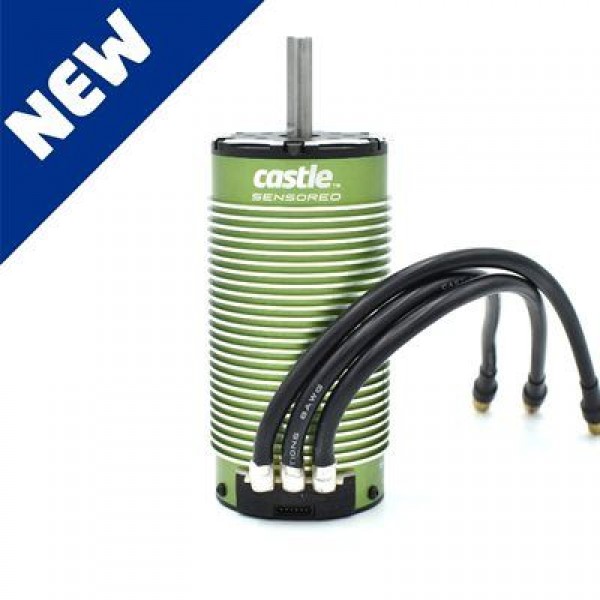

Castle Creations 2028 Extreme 1/5 4-Pole Sensored Brushless Motor, 1100kV

The BRAND NEW Castle 2028 Extreme 1100KV motor is a 4-POLE 12-SLOT design that boasts exceptional EFFICIENCY and produces LESS HEAT. If you need LARGE-SCALE POWER for LARGE-SCALE VEHICLES the new BRUSHLESS SENSORED 2028-1100KV motor will no doubt hold up to the heavy throttle and extended usage that 1/5th scale vehicles like the Losi 5IVE-T, 5IVE-B or DBXL-E encounter. It is the perfect upgrade for any 1/5 scale RC hobby vehicles (including gas to electric conversions) weighing up to 30 lbs. The 2028 Extreme can easily run in the 10 horsepower range*

Without a robust and reliable design, efficiency will only go so far. RC enthusiasts love pushing their equipment to the edge. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction of our motor required careful component selection; each verified through internal testing to ensure the HIGHEST EFFICIENCY possible. In the end, the result is a motor with unmatched quality, performance, and reliability. We wouldn’t put our name on anything less.

• Running modes include Sensored and an ULTRA-EFFICIENT sensorless mode.
• High-strength, high-temperature grade neodymium sintered magnets combined with High-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions.
• Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible.
• Our proprietary winding techniques allow us to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor.
• Dual sensor ports to ensure optimal installation in your large-scale vehicle.
• Updated modern and sleek design; looks as cool as it performs.
• Without a robust and reliable design, efficiency will only go so far. RC enthusiasts love pushing their equipment to the edge. The Castle engineers know this and spared no expense when developing a design that could hold up to the harsh conditions that the RC community will throw at it, resulting in a cooler running motor. A cooler motor has a longer lifetime. Construction of our motor required careful component selection; each verified through internal testing to ensure the HIGHEST EFFICIENCY possible. In the end, the result is a motor with unmatched quality, performance, and reliability. We wouldn’t put our name on anything less.

Input Voltage Range: 10S MAX
Kv: 1100
Max. RPM: 45,000
Length: 4.4" (112.7mm)
Diameter: 2.2" (56.3mm)
Weight (w/wires): 44 oz./1.25kg
Shaft Length: 30mm
Shaft Diameter: 8mm
Mounting Hole Specifications: 4mm @ 30mm
Cooling Fan: Available, but not included. See 011-0019-00 here.
Connectors: 8.0mm male connectors, 250mm sensor wire.
Needed for Operation: Compatible Electronic Speed Control (ESC)
Recommended ESC(s): Mamba XL X, Mamba XLX2
Max. Recommended Vehicle Weight: RC vehicles weighing less than 30lbs.
Running modes: Sensorless and Sensored
