BowHouse RC Axial SCX10 III SVT Panhard Reinforcement Bracket

There's lots to like about the new Axial SCX10 III, but the Panhard mount on the stock AR45 portal axle housing could use a little help. We've designed our Panhard reinforcement bracket to bolt right onto the stock housing with no modifications, making installation a snap. And it's made of CNC machined aluminum to withstand whatever you can throw at it out on the rocks and trails.

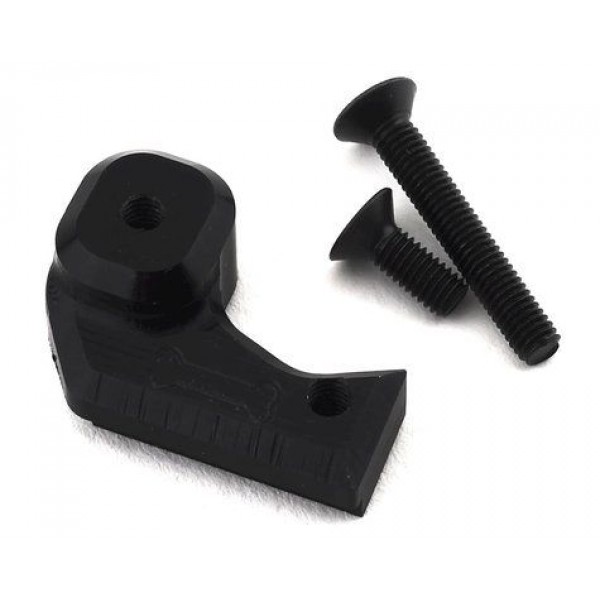

Includes:

• Panhard reinforcement bracket
• (1) M3 x 8mm flat head screw
• (1) M3 x 20mm flat head screw

Installation notes:

• Start by removing right front tire. Then remove screw securing right front shock and lower link to the axle housing.
• Unscrew panhard mount from axle housing.
• Snap panhard reinforcement bracket onto front of axle housing around existing panhard mount so that secondary screw hole is visible through the hole in the axle housing truss.
• Use M3 x 8mm flat head screw to secure bracket to axle housing through hole in axle housing truss (thread lock recommended).
• Use M3 x 20mm flat head screw to attach panhard to axle (do NOT use thread lock). Make sure that screw threads all the way into panhard reinforcement bracket.
