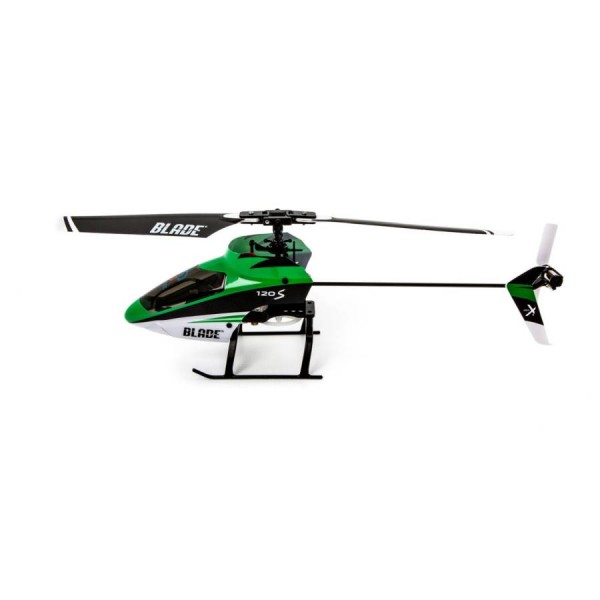

The original Blade® 120 SR heli was specifically designed to provide the inherent stability of a coaxial helicopter and the agile control of a single-rotor helicopter. Modeled after the popular ultra micro-size Blade mSR heli, the larger 120 SR heli was faster and more powerful so it could be flown outdoors. Now that concept takes a leap forward with simpler mechanics and the superiority of SAFE® technology so that pilots master the basics of single-rotor flight more easily.
The sub-micro Blade 120 S is a great way to graduate from coaxial helis and multirotor drones to a single-rotor machine. Fixed-pitch, flybarless rotor mechanical simplicity lets you enjoy extra speed and agility with a design that has a high-level of durability and efficiency. Exclusive SAFE technology helps keep you in control by delivering the stability you need to develop confidence quickly. Move up to higher levels of flight performance easily with the flip of a transmitter switch. Prevent a crash the second you feel disoriented—just press the Panic Recovery button and SAFE technology locks the 120 S into a familiar level attitude. So whether you aim to advance your skills, or want a fun fly-around heli, the Blade 120 S can help you be the master of single-rotor flight.
Approximate Assembly Time: Less than 1 Hour
- Fully assembled, no building necessary
- SAFE® technology makes helicopter flight more fun
- Panic recovery mode can prevent a crash
- Flybarless rotor mechanical simplicity
- Durable construction with carbon-fiber components
- High-speed main and coreless tail rotor motors (installed)
- Sub-micro linear long-throw cyclic servos (installed)
- E-flite® 500mAh 1S 3.7V 25C Li-Po flight battery and charger (included)
- Multi-function transmitter with Spektrum™ DSMX® technology
Approximate Flight Time: 5 minutes
Battery: 1S 3.7V 500mAh Li-Po
Canopy/Body Material: Plastic
Completion Level: Ready-To-Fly
Flying Weight: 3.74 oz (106g)
Height: 4.25 in (108mm)
Length: 12.99 in (330mm)
Main Blade Material: Plastic
Main Frame Material: Plastic
Main Motor Type: Brushed
Main Rotor Blade Length: 5.75 in (146mm)
Main Rotor Diameter: 12.99 in (330mm)
Main Rotor Head Type: Fixed Pitch Flybarless
Skill Level: Level 2
Swashplate Type: 90 degree
Tail Blade Material: Plastic
Tail Drive: Direct Drive
Tail Rotor Diameter: 2.76 in (70mm)
Width: 1.77 in (45mm)
Product VideosSAFE® Technology:
The Blade® 120 S features exclusive SAFE (Sensor Assisted Flight Envelope) technology, a revolutionary electronic flight envelope protection system that makes it easy for anyone to fly helicopters with confidence by providing flight mode versatility and Panic Recovery mode that automatically returns the 120 S to a level attitude.
Beginner mode: Small pitch and roll angle limits combined with intuitive self-leveling help you keep the heli under control.
Intermediate mode: Pitch and roll limits are expanded to offer a larger flight envelope while intuitive self-leveling continues to provide positive stability.
Experienced mode: Limits and leveling are removed to provide full maneuverability.
Larger than a micro-class machine, the sub-micro 120 S is great for outdoor flight in low wind, yet it's still small enough that it can be flown in a variety of indoor spaces. Plus, it's practical to have more batteries on hand since the 120 S uses a low-cost 1S Li-Po battery.
The lightweight airframe features durable polymers and carbon-fiber components that deliver mechanical precision and the tolerance to absorb typical mishaps.
The new flybarless head design offers a higher level of mechanical efficiency as well as a lower parts count which makes helicopter maintenance simpler.
The two 2.9-gram linear long-throw cyclic servos deliver the ideal level of torque and speed for precision and stability that's remarkable for its class.
The included charger operates from any convenient USB power source. Expect the provided 1S battery to offer average flight times of 5 minutes.
The factory-installed 4-in-1 control unit features a Spektrum™ 2.4GHz DSMX®-compatible receiver, main and tail motor ESCs, mixer and flybarless controller. Count on the industry-leading reliability of Spektrum technology to deliver precision control that's ideal for any flying site environment.
The RTF includes a Blade 6-channel transmitter with functionality that makes it easy to select SAFE technology flight modes as well as choose high or low dual rate sensitivity. A similar transmitter is required to complete the BNF version.
Part Number BLH4100 Kit Type RTF Approximate Assembly Time Less than 1 Hour Approximate Flight Time 5 minutes Battery 1S 3.7V 500mAh Li-Po Canopy/Body Material Plastic Channels 4 Completion Level Ready-To-Fly Flying Weight 3.74 oz (106g) Height 4.25 in (108mm) Length 12.99 in (330mm) Main Blade Material Plastic Main Frame Material Plastic Main Motor Type Brushed Main Rotor Blade Length 5.75 in (146mm) Main Rotor Diameter 12.99 in (330mm) Main Rotor Head Type Fixed Pitch Flybarless Skill Level Level 2 Swashplate Type 90 degree Tail Blade Material Plastic Tail Drive Direct Drive Tail Rotor Diameter 2.76 in (70mm) Type Helicopter Width 1.77 in (45mm)
