Overview

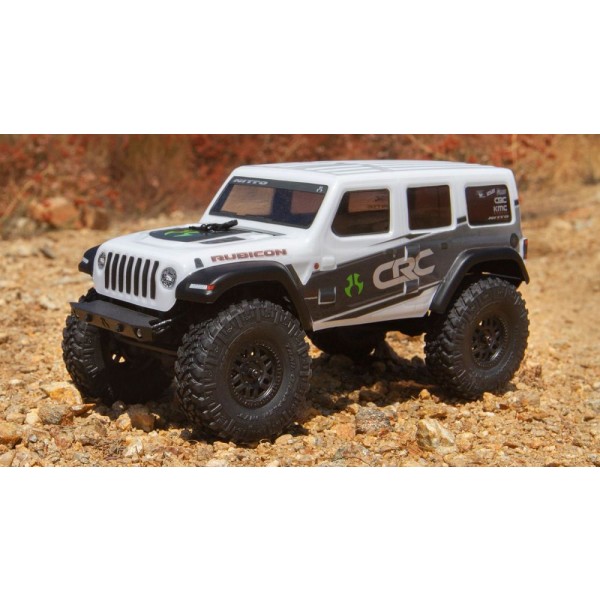

No matter where you are, the 1/24 scale Axial® SCX24™ Jeep® Wrangler JLU CRC 4WD makes it the scene for RC adventures. If you’re stuck at work, go crawling on your desk. A messy room becomes an ideal obstacle course. Take your vehicle outside — where its water-resistant electronics are safe from the elements — and set up an exciting trail with a few holes, twigs, and rocks. Full-time 4WD and a 3-link front/4-link rear suspension let you muscle over big challenges. Worm gears on the axles increase ground clearance, while realistic steel frame rails stand up to hard knocks. The Axial® SCX24™ Jeep® Wrangler JLU CRC performs like a winner and looks like one, too. The realistic body rides on licensed KMC Machete wheels and Nitto Trail Grappler tires. For quick battery access, just remove one clip to tilt back the body. Two LEDs in the front bumper light up the trail for night-time crawling. The SCX24™ Jeep® Wrangler JLU CRC comes ready-to-run with radio and electronics included and installed.
Includes:
- (1) AX-4 2.4GHz 2-Channel Radio
- (1) AE-6 Forward/Reverse ESC/Rx
- (1) SCX24 88T Motor with Pinion
- (1) AS-1 Micro Servo
- (1) Dynamite® 7.4v 350mAh 2S LiPo Battery
- (1) USB Charger
- (4) AA Batteries
features
- Includes radio transmitter and receiver and battery.
- Comes with ESC, motor, and servo already installed.
- Features a realistic new body design.
- Licensed wheels are modeled after 1-to-1 KMC Machete Wheels.
- Licensed tires are modeled after 1-to-1 Nitto Trail Grappler M/T tires.
- 3-Link front and 4-link rear suspension provides optimal handling.
- Includes radio transmitter and receiver and battery.
- Comes with ESC, motor, and servo already installed.
- Features a realistic new body design.
- Licensed wheels are modeled after 1-to-1 KMC Machete Wheels.
- Licensed tires are modeled after 1-to-1 Nitto Trail Grappler M/T tires.
- 3-Link front and 4-link rear suspension provides optimal handling.
Approximate Assembly Time: No assembly requiredSpecs
Ball Bearings: Full set
Batteries: Dynamite 7.4V 350mAh 30C LiPo
Body: Axial Jeep JL Hardtop
Brakes: Integral with ESC
Charger: USB LiPo Charger
Chassis: Stamped Steel Chassis Rails
Completion Level: Ready-To-Run
Differential: Worm Gear 16T/4T
Drivetrain: 4WD
Ground Clearance: 1.06" (27mm)
Height: 4.2" (106.5mm)
Length: 7.8" (199.5mm)
Motor Size: 180
Motor Type: Brushed 180 size, 88 turn
Pinion: 10T
Radio: Axial AX-4 2.4GHz 2-Channel
Servos: AS-1 Micro Steering Servo
Shock Type: Coil-Over, Plastic Body, .9 - 1.3" (24 - 33.4mm)
Size/Scale: 1/24
Speed Control: AE-6 ESC/RX with Reverse
Spur Gear: 55T
Suspension: 3 Link Front and 4 Link Rear
Tire Diameter: 2.0" (51mm)
Tire Tread: Nitto Trail Grappler M/T
Track: Front and Rear, 3.9" (99.5mm) distance from outer edges of tires measured side-to-side
Vehicle Type: Desert Crawler
Water-Resistant: Yes
Wheel Diameter: 1.0" (26mm)
Wheel Type: Plastic KMC Machete, black in color
Wheel Width: .48" (12.4mm)
Wheelbase: 5.2" (132.5mm)
Width: 3.9" (99.5mm)Product Videos
STEEL C-CHANNEL CHASSIS FRAME RAILS:Features Overview
Just like the 1/10th scale SCX10™ platform, the SCX24™ chassis features rugged and sturdy steel c-channel frame rails with bracing to keep everything intact and aligned.
DYNAMITE® 88T BRUSHED MOTOR:
The Dynamite 88T brushed electric motor provides the right amount of torque to help ascend steep climbs. It's mated to a steel motor mount to keep flex to a minimum, which helps protect the gears.
WORM GEARS:
The front and rear differentials each house a worm screw and worm gear setup to get the power to the axles and create higher ground clearance.
COILOVER SHOCK ABSORBERS:
Even at this small scale, the combination of coilover shocks with simulated reservoirs and durable plastic suspension links delivers the crawling performance you've known and expect from Axial.
FRONT AND REAR SOLID AXLES:
The front and rear axles consist of a two piece, molded plastic solid axle design. For optimal handling, the SCX24™ suspension features a three-link front and four-link rear setup.
LED LIGHTS INCLUDED:
Two bright LED lights are included and are mounted in the front bumper. An extra LED light port on the ESC allows you to add optional LED lights.
KMC XD229 MACHETE CRAWL WHEELS & NITTO TRAIL GRAPPLER M/T TIRES:
Officially licensed KMC XD Machete wheels are legendary in the off-road world. They are molded in black and feature stunning scale details, despite the small scale.
The officially licensed Nitto Trail Grappler M/T Tires offer a fantastic blend of off-road performance while still retaining excellent composure for on-road use.
FULL BALL BEARINGS:
Just because the SCX24™ is smaller in size doesn't mean the features need to follow suit. No bushings found here, instead the drivetrain is freely spinning on sealed cartridge bearings throughout the entire vehicle.- Specs
Product Specifications
Part Number AXI00002T1 Scale 1/24 Drivetrain 4WD Kit Type RTR Approximate Assembly Time No assembly required Ball Bearings Full set Batteries Dynamite 7.4V 350mAh 30C LiPo Body Axial Jeep JL Hardtop Brakes Integral with ESC Charger USB LiPo Charger Chassis Stamped Steel Chassis Rails Completion Level Ready-To-Run Differential Worm Gear 16T/4T Drivetrain 4WD Ground Clearance 1.06" (27mm) Height 4.2" (106.5mm) Length 7.8" (199.5mm) Motor Size 180 Motor Type Brushed 180 size, 88 turn Pinion 10T Radio Axial AX-4 2.4GHz 2-Channel Servos AS-1 Micro Steering Servo Shock Type Coil-Over, Plastic Body, .9 - 1.3" (24 - 33.4mm) Size/Scale 1/24 Speed Control AE-6 ESC/RX with Reverse Spur Gear 55T Suspension 3 Link Front and 4 Link Rear Tire Diameter 2.0" (51mm) Tire Tread Nitto Trail Grappler M/T Track Front and Rear, 3.9" (99.5mm) distance from outer edges of tires measured side-to-side Vehicle Type Desert Crawler Water-Resistant Yes Wheel Diameter 1.0" (26mm) Wheel Type Plastic KMC Machete, black in color Wheel Width .48" (12.4mm) Wheelbase 5.2" (132.5mm) Width 3.9" (99.5mm) - Reviews
