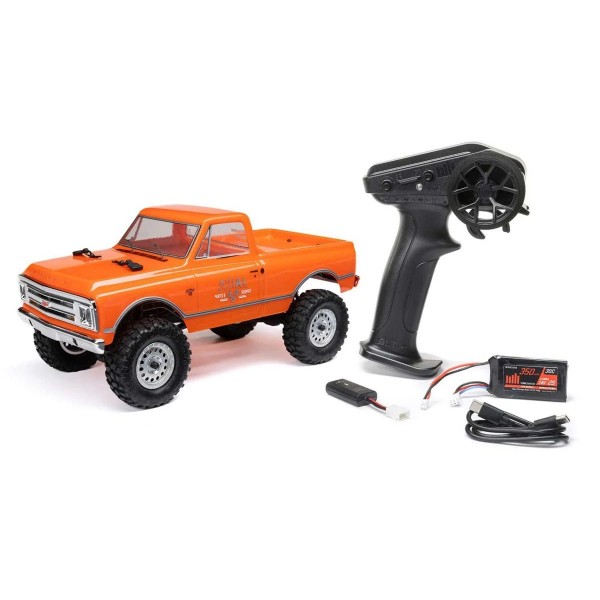

Axial 1/24 SCX24 1967 Chevrolet C10 4WD Brushed Truck RTR, Orange

Introduced by GM in 1967 as a multi-purpose workhorse, the full-size Chevrolet C10 pickup holds its own on the trails even today. It refuses to show its age or diminish in popularity. As one of the best-selling Axial micro rock crawlers of all time, the 1/24 scale SCX24 1967 Chevrolet C10 not only recreates the 1:1 original’s classic styling but also delivers exceptional value in an RC rig — value that’s better than ever in this updated version.

Plush oil-filled shocks have been added for a suspension that soaks up bumps and provides a stable ride over rugged terrain. Reliable Spektrum electronics are now included, and there are two fresh body colors to choose from. Completely assembled, fully equipped, and improved with key upgrades, the SCX24 Chevy C10 is a perfect choice for hobby beginners as well as for experienced Axial RC crawling enthusiasts.

The SCX24 Chevy C10 makes any location the scene for rock crawling fun. Its versatile size opens up almost any setting to spur-of-the-moment RC crawling expeditions. Set up an indoor obstacle course in any room by placing objects on the floor, a table, or desk. Outdoors, collect some twigs and small rocks, dig a few holes, and create a challenging trail for adventuring in the open air.

The SCX24 Chevy C10 has all the performance capabilities of the proven Axial SCX24 platform. Full-time 4WD and a 3-link front/4-link rear suspension let you muscle over big challenges. Worm gears on the axles increase the ground clearance. Realistic steel C-channel frame rails stand up to hard knocks. The detailed scale body rides on licensed 1:1 Method wheels and BF Goodrich tires that tackle on-road and off-road challenges with ease.

Inside the box, in addition to the assembled and finished rig, you’ll find a Spektrum SLT2 2.4GHz transmitter, 350mAh LiPo battery, and handy USB charger. Four AA batteries are also included for the transmitter. Unleash big crawling adventures with the updated Axial SCX24 1967 Chevrolet C10!

• Detailed 1967 Chevrolet C10 polycarbonate body in two fresh color options
• Plush oil-filled shocks
• Realistic steel frame rails for added strength
• Spektrum SLT2 2.4GHz radio system
• Spektrum 350mAh LiPo battery and USB charger
• Two LED lights in the front bumper
• 080-size brushed motor
• True, full-time 4-wheel drive
• Metal worm drive gear on front and rear axles
• 3-Link front and 4-link rear suspension
• Fully equipped and ready-to-run
• Licensed wheels modeled after 1/1 Method Wheels
• Licensed tires modeled after 1/1 BFGoodrich Tires

Approximate Assembly Time: None
Ball Bearings: Full set
Battery: Included
Body: Axial 1967 Chevrolet C10 Pickup
Brakes: Integrated with ESC
Charger: Included
Chassis: Stamped Steel Chassis Rails
Completion Level: Ready-To-Run
Connector Type: PH 2.0 (High-Current Ultra Micro)
Differential: Worm gear 16T/4T
Drive Type: Forward/Reverse
Drivetrain: 4WD
Front Track: 3.9 in (99.5mm)
Ground Clearance: 1.06" (27mm)
Make: Chevy
Motor Size: 080 Brushed Electric Motor
Motor Type: Brushed
Outer Diameter: 1.88" (48 mm)
Pinion: 10T
Power Type: Electric
Product Height: 3.6" (91 mm)
Product Length: 8.6" (218 mm)
Product Weight: 8.0 oz (0.22kg)
Product Width: 3.9" (99 mm)
Radio: Included
Rear Track: 3.9 in (99.5mm)
Receiver: Included
Scale: 1/24
Servos: Included
Shock Type: Coil-over, Oil-filled, 0.9-1.3 in (24-33.4mm)
Speed Control: Included
Spur Gear: 55T
Steering Type: 2WS
Suspension: Solid Axle, Front and Rear
Tire Tread: Nitto Trail Grappler
Vehicle Type: Rock Crawler
Water-Resistant: Yes
Wheel Width: .48" (12.4mm)
Wheelbase: z5.2" (132 mm)
1967 CHEVROLET C10 BODY:
The full-size 1967 Chevrolet C10 had the sturdy look of a do-it-all workhorse, and the Axial SCX24 1/24 scale RC rig follows suit. Its detailed scale body comes factory-finished in two new color options. For quick battery access, just remove two clips to tilt back the body.

WORM GEARS:
The front and rear differentials house metal worm gears for durability, increased ground clearance, and strong drag brakes.

STEEL C-CHANNEL CHASSIS FRAME RAILS:
Just like the 1/10 scale SCX10 platform, the SCX24 chassis features rugged and sturdy steel C-channel frame rails with bracing to keep everything intact and aligned.

FRONT AND REAR SOLID AXLE HOUSINGS:
The front and rear axles consist of a two piece, molded composite solid axle design. For optimal handling, the SCX24 suspension features a 3-link front and 4-link rear setup.

4-LINK REAR SUSPENSION:
The rear suspension geometry uses a 4-link design which is optimized to reduce axle steer and torque twist.

OIL-FILLED SHOCKS:
Oil-filled shocks have been added that allow the suspension to articulate smoothly over rough terrain. You can adjust the preload with 1mm, 2mm, and 4mm spacers to fine-tune your rig for your handling needs.

DURABLE STEEL AXLES:
Steel front and rear axles, front stub axles, and dogbones provide the strength and durability needed to keep going during tough climbs and over rough trails.

SPLINED DRIVE SHAFTS:
The front and rear drive shafts are splined and sleeved to allow for maximum suspension travel while keeping the power to the wheels.

DYNAMITE BRUSHED MOTOR:
The included Dynamite 88T 080-size brushed electric motor provides the right amount of torque for making steep climbs. It's mated to a steel motor mount to keep flex to a minimum and help protect the gears.

SPEKTRUM SLT2 2.4GHz RADIO SYSTEM:
The Spektrum SLT2 2-channel radio system offers high-end features such as throttle/steering travel adjust and throttle limiting. The ready-to-run package is so complete, even AA transmitter batteries are included.

FULL BALL BEARINGS:
Just because the SCX24 is small doesn't mean its features follow suit. There are no bushings here. The drivetrain spins freely on sealed cartridge bearings throughout the entire vehicle.

METHOD MR307 HOLE WHEELS & BFGOODRICH® KRAWLER™ T/A® KX TIRES:
The MR307 Hole is a fresh take on the classic hole-wheel design that dominated early off-road racing. BFGoodrich Krawler™ T/A® KX tires have won more rock-crawling championships than all other tires combined. The Axial version captures the same aggressive look in 1/24 scale.

LED LIGHTS INCLUDED:
Two bright LED lights are included and are mounted in the front bumper. An extra LED light port on the ESC allows you to add optional LED lights.
