Overview

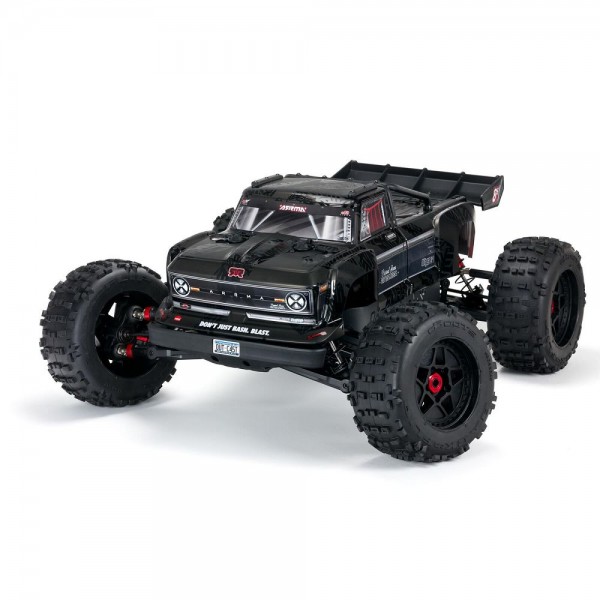

This is ARRMA® bashing performance at its biggest and best! Fully assembled and ready to complete with your choice of radio and 8S brushless power system, the 1/5 OUTCAST™ 4WD EXtreme Bash Stunt Truck Roller is the perfect platform for blasting over rough terrain and performing flips and tricks with ease.
Equipped right out of the box with a premium package of EXtreme Bash (EXB) parts and options, the 1/5 OUTCAST™ 4WD EXB Stunt Truck Roller is the top-of-the-line ARRMA® large-scale stunt vehicle. It has extra toughness everywhere it counts. Components receiving the EXB treatment include the 5mm thick EXB 7075 T6 CNC aluminum laser-etched chassis plate; EXB red-anodized CNC aluminum front brace mount; and exclusive EXB matte and gloss effect finished body for a look unlike any other vehicle.
With adjustable, oil-filled, 20mm bore shocks on ultra-thick composite towers soaking up the bumps, the 1/5 OUTCAST™ 4WD EXB Stunt Truck Roller blasts over dirt, asphalt, and grass — all terrain and all conditions. Long-lasting dBoots® Back-Flip tires on multi-spoke wheels with durable hubs add all-terrain traction. Everything in the durable design contributes to confident control and responsive handling.
A center body support, aluminum center braces and composite chassis side pods add more strength. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, provide a reliable, heavy-duty drivetrain that holds up to demanding stunts and brutal terrain.
ARRMA® engineering also cuts your maintenance time to the minimum. The 1/5 OUTCAST™ 4WD EXB Stunt Truck Roller has an efficient, driver-friendly design, with easy-access front and rear diff modules and a sliding mount for fast, hassle-free motor access. The easy-access, molded electronics module contains a waterproof receiver box, servo mount and ESC tray, and is ready to protect your choice of electronics from dirt and moisture.
It all adds up to make the 1/5 OUTCAST™ 4WD EXtreme Bash Stunt Truck Roller more than just massive and powerful. It's the ultimate ARRMA® stunt bash machine for the ultimate large-scale experience.Includes:
- (1) ARRMA® OUTCAST™ 1/5 4WD Extreme Bash Stunt Truck Roller
- (1) Optional 39T Spur Gear
- (1) 49 Series Motor Plate
- (1) 56 Series Motor Plate
- (1) 1/5 Servo Mounts
- (1) 1/6 Servo Mounts
- (1) Product Manual
Requires:
- Motor
- Pinion
- Electronic Speed Control
- Transmitter
- Receiver
- Steering Servo
- Batteries
- Charger
- LiPo Charging Bag
features
- EXB 7075 T6 5mm thick CNC aluminum laser-etched chassis plate
- EXB Red-anodized CNC aluminum front brace mount
- EXB Matte and gloss effect body
- Heavy-duty 8mm thick steel rear turnbuckles
- Heavy-duty 7mm thick steel steering turnbuckles
- Oil-filled adjustable 20mm bore shocks with 6mm thick shock shafts and new plush shock tuning
- Heavy-duty servo saver springs
- Front and rear sway bars
- Red-anodized aluminum 49 and 56 series motor plates
- dBoots® Back-Flip tires
- 47T and optional 39T Spur Gear
- Servo mounts for 1/5 and 1/6 servos
- Wheelie bar
- Front bumper with impact-absorbing design
- Easy-access 3-bolt sliding motor mount for quick motor removal
- Ultra-thick composite front and rear shock towers
- Black anodized aluminum rear lower chassis brace
- Multi-structured center brace system for maximum durability
- Heavy-duty drivetrain
- Easy-access front and rear diff module design
- All-metal diff outdrives and gearbox internals
- Durable steel driveshafts
- Durable wheel hubs for increased strength
- Easy-access waterproof electronics module
- Center body support and brace for maximum durability
- Strong composite chassis side pods
- 2-year warranty (see website support for details)
Approximate Assembly Time: 1 - 3 hoursSpecs
Ball Bearings: Full set, rubber shielded
Battery: Sold Separately
Body: Painted, decalled and trimmed
Charger: Sold Separately
Chassis: 5mm plate, 7075-T6 aluminum
Completion Level: Roller
Differential: Gear type, 3 diffs total
Drivetrain: 4WD
Drive Type: Forward/Brake/Reverse
Final Drive Ratio: 9.1 - 28.4
Front Track: 23.46" (596mm)
Power Type: Electric
Internal Gear Ratio: 9.06
Product Height: 12.01" (305 mm)
Product Length: 28.11" (714 mm)
Product Weight: 23.32lbs (10.6kg)
Product Width: 23.46" (596 mm)
Radio: Sold Separately
Rear Track: 23.46" (596mm)
Receiver: Sold Separately
Scale: 1/5
Servos: Sold Separately
Shock Type: Aluminum body oil-filled coil-over springs
Speed Control: Sold Separately
Spur Gear: 47T fitted, 39T included
Suspension: Independent
Vehicle Type: Monster Truck
Water-Resistant: Yes
Wheelbase: 16.93" (430 mm)Product Videos
EXB (EXtreme Bash) Components EXB (EXtreme Bash) Components:Features Overview
EXB-hardened components throughout its fully assembled chassis give the 1/5 scale ARRMA® OUTCAST™ EXtreme Bash Stunt Truck Roller virtually unstoppable strength.
Steel Turnbuckles:
Heavy-duty components including the 8mm thick steel rear turnbuckles and 7mm thick steel steering turnbuckles enable the 1/5 scale OUTCAST™ EXB to withstand extreme off-road bashing.
Oil-Filled Shocks:
Mounted on ultra-thick composite front and rear towers and featuring new plush shock tuning, the adjustable, oil-filled, 20mm bore shocks with 6mm thick shock shafts easily soak up bumps
High-Traction dBoots® Tires:
Long-lasting dBoots® Back-Flip tires on multi-spoke wheels with durable hubs deliver all-terrain traction — and add an aggressive edge to the EXB matte and gloss effect finished truck body.
Quick Motor Access:
ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. For example, the easy-access, 3-bolt sliding motor mount allows quick motor removal.
Electronics Module:
The easy-access, molded electronics module screwed to the chassis contains a waterproof receiver box, servo mount and ESC tray — ready to protect your electronics from dirt and moisture.
Multi-Structured Center Brace System:
Made of rugged anodized 7075 T6 aluminum, the laser-etched 5mm chassis plate includes strong composite chassis side pods and a center body support and brace for maximum durability.
Durable Metal Construction:
Durable steel driveshafts plus all-metal diff outdrives and gearbox internals keep the heavy-duty 4-wheel drivetrain rolling over punishing tracks. An EXB-toughened suspension system smooths the ride.- Specs
Product Specifications
Part Number ARA5210 Scale 1/5 Drivetrain 4WD Kit Type Unassembled Kit Approximate Assembly Time 1 - 3 hours Ball Bearings Full set, rubber shielded Battery Sold Separately Body Painted, decalled and trimmed Charger Sold Separately Chassis 5mm plate, 7075-T6 aluminum Completion Level Roller Differential Gear type, 3 diffs total Drivetrain 4WD Drive Type Forward/Brake/Reverse Final Drive Ratio 9.1 - 28.4 Front Track 23.46" (596mm) Power Type Electric Internal Gear Ratio 9.06 Product Height 12.01" (305 mm) Product Length 28.11" (714 mm) Product Weight 23.32lbs (10.6kg) Product Width 23.46" (596 mm) Radio Sold Separately Rear Track 23.46" (596mm) Receiver Sold Separately Scale 1/5 Servos Sold Separately Shock Type Aluminum body oil-filled coil-over springs Speed Control Sold Separately Spur Gear 47T fitted, 39T included Suspension Independent Vehicle Type Monster Truck Water-Resistant Yes Wheelbase 16.93" (430 mm) - Reviews
