Overview

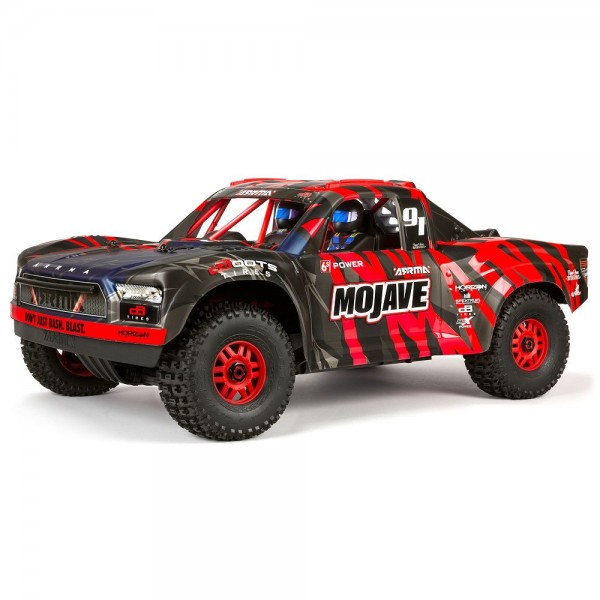

Experience the speed and durability of ARRMA® bashing in a big way with the 1/7 scale brushless MOJAVE™ 6S BLX 4WD Desert Truck. Designed Fast and Designed Tough, it's ready for extreme performance right out of the box, whether you're thrashing through coastal sand dunes or blasting across concrete sidewalks
ARRMA® engineers have updated the MOJAVE™ 6S BLX 4WD Desert Truck with a brushless power system featuring the Spektrum™ Firma™ 150A Smart ESC and Firma™ 2050Kv brushless motor. The combination lets you cut loose with incredible torque, acceleration and speed, while the heavy-duty aluminum and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA® also includes a new, steel gear Spektrum™ S652 Digital Servo — which is 32% stronger and 5% faster than the previous version's ADS-15M servo.
The ready-to-run package now also includes a 3-channel Spektrum™ SLT3™ radio and Spektrum™ SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter's ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you're a new driver, you'll be able to set throttle limits at 50% or 75% until you're ready to use the full speed potential. The SLT3™ is compatible with Tactic® SLT™ receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.
Because the SR315 receiver can use SLT™ and DSMR® protocols, you can easily upgrade to a Spektrum™ DSMR® transmitter later — then, download the free Spektrum™ Dashboard™ app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma™ electronics. You'll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.
With the rugged construction of the MOJAVE™ 6S BLX 4WD Desert Truck, you'll have the strength needed to survive anything — bashing through dirt, asphalt and grass, in sun, rain or snow. The tough-as-nails anodized aluminum chassis is reinforced with front, rear and center braces for maximum durability. Bumpers and nerf bars supply impact protection on all sides. Thanks to independent suspension with bump-soaking oil-filled shocks, the Desert Truck handles equally well over wicked and well-travelled tracks.
The drivetrain is a masterpiece of heavy-duty design. Featuring steel driveshafts, metal gears, and all-metal diff outdrives, it's ready to take full advantage of the brushless power system's potential. As it comes out of the box, the MOJAVE™ 6S BLX Desert Truck is incredibly fast. Use a 6S LiPo with the optional pinion gear upgrade (gear is included), and the resulting 60+ MPH speed potential is enough to crush any competitor. Keeping your truck in top form is easy. A sliding mount gives you access to the motor in seconds. You can remove the center diff for maintenance by taking out just five bolts.
Multi-terrain dBoots® FORTRESS™ tires on multi split-spoke wheels give your MOJAVE™ 6S BLX Desert Truck the grip to get up, over, or through anything in your way. And it doesn't just perform like a winner. It looks like one, too, with a painted and decaled desert truck body, color-coordinated roll cage and roof rails, and even a detailed cockpit.Includes:
- ARRMA® MOJAVE™ 6S BLX 1/7 Desert Truck RTR
- Spektrum™ Firma™ 150A Smart 4S/6S ESC (installed)
- Spektrum ™ Firma ™ 4074 2050Kv Brushless Motor with ARRMA® Heatsink (installed)
- Spektrum ™ S652 Metal-Geared Digital Servo (installed)
- Spektrum ™ SR315 3-Channel Dual Protocol Receiver (installed)
- Spektrum ™ SLT3™ 2.4GHz 3-Channel Radio
- Product Manual
Requires:
- 4S or 6S LiPo Battery
- LiPo Compatible Charger
- LiPo Charging Bag
- (4) AA Batteries
Notes:
* For details on waterproof standards, please refer to the product instruction manual
features
- Ready-to-run
- Spektrum™ SLT3™ 2.4GHz 3-Channel Radio
- Spektrum™ SR315 Dual Protocol 3-Channel Receiver
- Spektrum™ S652 Digital Servo
- Spektrum™ Firma™ 150A Smart ESC
- Spektrum™ Firma™ 4074 2050Kv Brushless Motor
- EXB compatible front brace
- Stronger rear brace mount
- Large volume waterproof* receiver box
- +1mm wheel hexes
- Stronger body mounts
- Anodized aluminum chassis
- Strong composite chassis side pods
- Center brace for maximum durability
- Center roll hoop interfaces with body roll cage for enhanced body durability
- Nerf bars for body and side impact support
- Realistic front and rear bumper protection
- Independent suspension for superior handling
- Flexible front bumper valance
- Heavy-duty suspension arms with red-anodized aluminum strengthening cap
- Oil-filled adjustable shocks
- Black-anodized aluminum front and rear shock towers
- Durable steel driveshafts throughout
- Heavy-duty drivetrain
- All-metal diff outdrives and gearbox internals
- Never-loose red aluminum servo saver
- Never-pop ball ends
- 5-Bolt center diff removal
- Easy-access sliding motor mount for quick motor removal
- Super-durable wheel hubs for increased strength
- Color-coordinated multi split-spoke wheels
- Multi-terrain dBoots® FORTRESS™ tires
- Multi-finish matte and gloss body
- Realistic cockpit detail
- Ultra-detailed decals
- Color coordinated protective roll cage and roof rails
- IC5® connectors (EC5™ compatible)
- 2-year limited warranty (see manual for details)
Approximate Assembly Time: No assembly requiredSpecs
Ball Bearings: Full set
Battery: Sold Separately
Body: Painted, decaled and trimmed
Brakes: User programmable
Charger: Sold Separately
Chassis: 0.12" (3mm) 6061-T6 aluminum
Completion Level: Ready-To-Run
Differential: 3-gear
Drivetrain: 4WD
Drive Type: Forward/Brake/Reverse
Final Drive Ratio: 13.44
Front Shock Spring Rate: 3.2 f-lb/in
Front Track: 13.98" (355mm)
Power Type: Electric
Gear Pitch: 1.0MOD
Inner Tire / Outer Wheel Diameter: 2.4 / 3.3 in
Internal Gear Ratio: 4.3
Motor Size: 4074
Motor Type: Brushless - Sensorless
Pinion: 16T
Product Height: 10.59" (269 mm)
Product Length: 28.15" (715 mm)
Product Weight: 11.88lbs (35mm)
Product Width: 13.98" (355 mm)
Radio: Included
Rear Shock Spring Rate: 7.7 f-lb/in
Rear Track: 13.98" (355mm)
Receiver: Included
Scale: 1/7
Servos: Included
Shock Type: Aluminum body, oil-filled adjustable
Speed Control: Included
Spur Gear: 50T
Suspension: Independent
Tire Tread: dBoots FORTRESS
Tire Type: Multi-surface
Vehicle Type: Desert Truck
Water-Resistant: Yes
Wheel Hex Size: 17mm
Wheel Type: 1/7 SC, 17mm Hex, Multi Split Spoke
Wheel Width: 1.66" (42mm)Product Videos
SPEKTRUM® SLT3® RADIO:Features Overview
Superb SLT response rate
50% and 75% throttle limited switch - great for beginners
Steering & throttle rate & trim adjustments with throttle and steering reversing
Foam steering wheel grip
Compatible with Tactic Receivers
SPEKTRUM® SR315 RECEIVER:
Dual Protocol - Compatible with SLT and DSMR® 2.4GHz protocol transmitters
Fast reponse rate and outstanding range
No tool binding and protocol switching
SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app)
3-Channels
FIRMA™ 4074 2050Kv Brushless Motor:
2050Kv 4074 size 6S brushless motor
Beautifully etched aluminum can
4-pole construction for smooth and consistent power
4mm gold bullet connectors for reliable and efficient connection
Black anodized aluminum motor can for increased heat dissipation
Super strong 5mm shaft
Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip
FIRMA™ 150A SMART Brushless ESC:
Waterproof* and dustproof design
150A, 6S LiPo ready (3S, 4S & 6S LiPo compatible)
Spektrum® SMART Technology
Fitted with reliable IC5® connectors (EC5™ compatible)
Integrated fan for reduced heat during extreme running
High quality 10awg wires
Low voltage cut off and thermal overload protection
User programmable punch, brake, BEC, reverse speed and motor timing settings- Specs
Product Specifications
Part Number ARA7604V2T2 Scale 1/7 Drivetrain 4WD Kit Type No Battery Approximate Assembly Time No assembly required Ball Bearings Full set Battery Sold Separately Body Painted, decaled and trimmed Brakes User programmable Charger Sold Separately Chassis 0.12" (3mm) 6061-T6 aluminum Completion Level Ready-To-Run Differential 3-gear Drivetrain 4WD Drive Type Forward/Brake/Reverse Final Drive Ratio 13.44 Front Shock Spring Rate 3.2 f-lb/in Front Track 13.98" (355mm) Power Type Electric Gear Pitch 1.0MOD Inner Tire / Outer Wheel Diameter 2.4 / 3.3 in Internal Gear Ratio 4.3 Motor Size 4074 Motor Type Brushless - Sensorless Pinion 16T Product Height 10.59" (269 mm) Product Length 28.15" (715 mm) Product Weight 11.88lbs (35mm) Product Width 13.98" (355 mm) Radio Included Rear Shock Spring Rate 7.7 f-lb/in Rear Track 13.98" (355mm) Receiver Included Scale 1/7 Servos Included Shock Type Aluminum body, oil-filled adjustable Speed Control Included Spur Gear 50T Suspension Independent Tire Tread dBoots FORTRESS Tire Type Multi-surface Vehicle Type Desert Truck Water-Resistant Yes Wheel Hex Size 17mm Wheel Type 1/7 SC, 17mm Hex, Multi Split Spoke Wheel Width 1.66" (42mm) - Reviews
