Overview

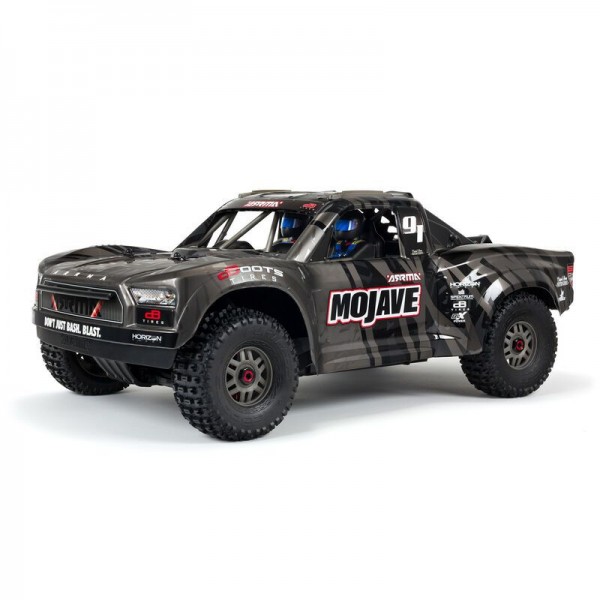

Experience the speed and durability of ARRMA® bashing in a big way with the 1/7 scale, 6S capable MOJAVE™ EXtreme Bash Desert Truck 4WD Roller. ARRMA® adds extra toughness everywhere it counts, making this chassis the perfect platform for high-speed bashing whether you're blasting through coastal sand dunes or thrashing across concrete sidewalks. It's fully assembled and ready to accept your choice of powerful electronics.
The tough-as-nails anodized aluminum chassis has been reinforced with aluminum front and rear chassis braces and a tower-to-tower center brace for maximum durability. Bumpers and nerf bars supply impact protection on all sides. Thanks to an independent suspension with bump-soaking oil-filled shocks, the truck handles equally well over wicked or well-travelled tracks.
Its drivetrain is a masterpiece of heavy-duty design, featuring steel driveshafts, metal gears, and all-metal diff outdrives. The MOJAVE™ EXtreme Bash Desert Truck 4WD Roller's list of EXB EXtreme Bash components also includes the following — and more — to give this big machine uncompromising durability:
- EXB Aluminum Chassis
- EXB Anodized Aluminum Suspension Towers
- EXB Anodized Aluminum Servo Mount
- EXB Large Volume Waterproof Receiver Box
- EXB Heavy-Duty Steel Turnbuckles
- EXB Plated Limited-Slip Differentials
- EXB Heavy-Duty Front Upper Steel Hinge Pins
Vented, multi-terrain dBoots® FORTRESS™ tires on multi split-spoke wheels give your MOJAVE™ EXtreme Bash Desert Truck 4WD Roller the grip to get up, over, or through anything in your way. And it doesn't just perform like a winner. It looks like one, too, with the included, exclusive EXB matte and gloss finish desert truck body, color-coordinated roll cage and roof rails, and even a detailed cockpit.Includes:
- (1) ARRMA® MOJAVE™ EXtreme Bash 1/7 Desert Truck 4WD Roller
- (1) Product Manual
Requires:
- Transmitter and Receiver
- Steering Servo
- Electronic Speed Control
- Motor
- 4S or 6S LiPo Battery
- Compatible Charger
- LiPo Charging Bag
Notes:
* For details on waterproof standards, please refer to the instruction manual
features
- 7075 T6 Aluminum EXB laser-etched chassis plate
- Anodized aluminum front and rear chassis braces
- Center brace for maximum durability
- Aluminum front upper hanger and top plate
- EXB Anodized aluminum servo mount
- EXB Large volume waterproof* receiver box
- Strong composite chassis side pods
- Heavy-duty front and rear suspension arms with aluminum strengthening cap
- Independent suspension for superior handling
- Steel rear suspension mounts
- EXB Heavy-duty steel turnbuckles
- EXB Heavy-duty front upper steel hinge pins
- Oil-filled adjustable shocks
- 7075 T6 Anodized aluminum shock towers front and rear
- Heavy-duty drivetrain
- Durable steel driveshafts
- All-metal diff outdrives and gearbox internals
- Limited-slip differentials front and center
- SAFE-D input gears
- EXB Plated limited slip differential
- Exclusive EXB matte and gloss effect body
- Realistic cockpit detail and ultra-detailed decals
- Center roll hoop interfaces with body roll cage for enhanced body durability
- Nerf bars for body and side impact support
- Realistic front and rear bumper protection
- Flexible front bumper valance
- Super-durable wheel hubs for increased strength
- Color-coordinated multi split-spoke wheels
- Multi-terrain vented dBoots® FORTRESS™ tires
- 2-year limited warranty
Approximate Assembly Time: 1 - 3 hoursSpecs
Ball Bearings: Transmission, rubber shielded
Battery: Sold Separately
Body: Painted, decaled and trimmed
Brakes: Integral with ESC (ESC sold separately)
Charger: Sold Separately
Chassis: 0.12" (3mm) CNC aluminum plate
Completion Level: Almost Ready-To-Run
Differential: 3 oil-filled metal gear
Drivetrain: 4WD
Drive Type: Forward/Brake/Reverse
Final Drive Ratio: 9.77 - 17.92
Front Shock Spring Rate: 1.35N/mm
Power Type: Electric
Gear Pitch: 1.0MOD
Ground Clearance: 1.85" (47mm)
Internal Gear Ratio: 4.3
Max Battery Dimensions: 6.22 x 1.89 x 2.76" (158 x 48 x 70mm)
Pinion: 16T
Product Height: 10.59" (269 mm)
Product Length: 28.15" (715 mm)
Product Weight: 10.56lbs (4790g)
Product Width: 13.98" (355 mm)
Radio: Sold Separately
Rear Shock Spring Rate: 0.56N/mm
Receiver: Sold Separately
Scale: 1/7
Servos: Sold Separately
Shock Type: Oil-filled coil over
Speed Control: Sold Separately
Spur Gear: 50T
Suspension: Independent
Track: Front and Rear 13.98" (355mm)
Vehicle Type: Desert Truck
Water-Resistant: Yes
Wheelbase: 16.54" (420mm)Product Videos
- Specs
Product Specifications
Part Number ARA7204 Scale 1/7 Drivetrain 4WD Kit Type Unassembled Kit Approximate Assembly Time 1 - 3 hours Ball Bearings Transmission, rubber shielded Battery Sold Separately Body Painted, decaled and trimmed Brakes Integral with ESC (ESC sold separately) Charger Sold Separately Chassis 0.12" (3mm) CNC aluminum plate Completion Level Almost Ready-To-Run Differential 3 oil-filled metal gear Drivetrain 4WD Drive Type Forward/Brake/Reverse Final Drive Ratio 9.77 - 17.92 Front Shock Spring Rate 1.35N/mm Power Type Electric Gear Pitch 1.0MOD Ground Clearance 1.85" (47mm) Internal Gear Ratio 4.3 Max Battery Dimensions 6.22 x 1.89 x 2.76" (158 x 48 x 70mm) Pinion 16T Product Height 10.59" (269 mm) Product Length 28.15" (715 mm) Product Weight 10.56lbs (4790g) Product Width 13.98" (355 mm) Radio Sold Separately Rear Shock Spring Rate 0.56N/mm Receiver Sold Separately Scale 1/7 Servos Sold Separately Shock Type Oil-filled coil over Speed Control Sold Separately Spur Gear 50T Suspension Independent Track Front and Rear 13.98" (355mm) Vehicle Type Desert Truck Water-Resistant Yes Wheelbase 16.54" (420mm) - Reviews
