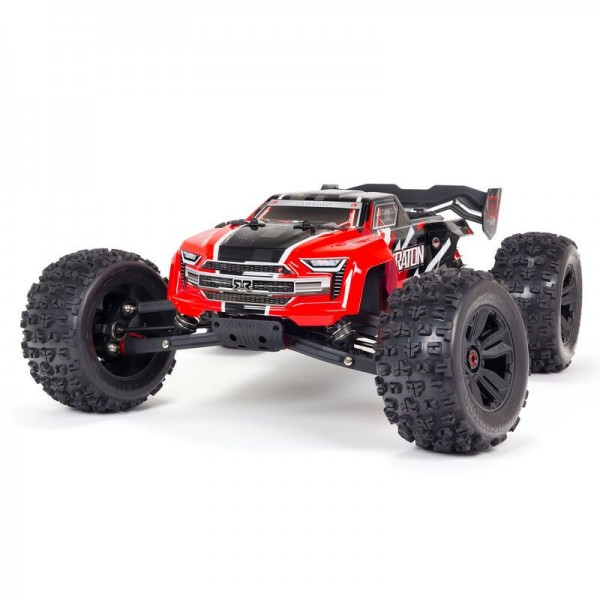

Arrma Kraton 6S v5 4WD BLX. 1/8 RTR 4WD Brushless Monster Truck, Red

ARRMA® engineers have outfitted the KRATON™ 6S BLX 4WD with a brushless power system that now features the Spektrum™ Firma™ 150A Smart ESC and Firma™ 2050Kv brushless motor. The combination delivers incredible torque, acceleration and speed. Heavy-duty aluminum and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA® also includes a new, steel gear Spektrum™ S652 Digital Servo which is 32% stronger and 5% faster than the previous version's ADS-15M servo. Add your favorite 4S or 6S LiPo battery and watch this monster truck smash your speed expectations — up to 60+ MPH in optimum conditions with a 6S LiPo battery and the included optional speed pinion gear.

The ready-to-run package now also includes a 3-channel Spektrum™ SLT3™ radio and Spektrum™ SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter's ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you're a new driver, you'll be able to set throttle limits at 50% or 75% until you're ready to use the full speed potential. The SLT3™ is compatible with Tactic® SLT™ receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them. Because the SR315 receiver can use SLT™ and DSMR® protocols, you can easily upgrade to a Spektrum™ DSMR® transmitter later — then, download the free Spektrum™ Dashboard™ app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma™ electronics. You'll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.

With adjustable oil-filled shocks soaking up the bumps, the KRATON™ 6S BLX 4WD Speed Monster Truck blasts over dirt, asphalt and grass — all terrain and all conditions. The shocks are mounted on black-anodized aluminum towers. Multi-split-spoke wheels come outfitted with super-aggressive, multi-surface dBoots® COPPERHEAD 2™ tires. A high downforce wing helps keep the vehicle grounded. Everything in the design contributes to confident control and responsive handling at high speeds.

For the durability needed to support intense brushless performance, ARRMA® uses a strengthened anodized aluminum chassis as the foundation for the KRATON™ 6S BLX 4WD. A center body support, aluminum center brace and composite chassis side pods add more strength. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, provide a reliable, heavy-duty drivetrain that holds up to extreme, high-speed bashing. A "never loose" aluminum steering servo saver and "never pop" ball ends supply more precision, reliability and confidence.

ARRMA® holds your maintenance downtime to the minimum with an efficient, driver-friendly design. A sliding mount allows quick, hassle-free motor access. The center diff is easy to reach and can be removed by taking out just seven bolts. Topping it all off is a monster truck body with streamlined good looks, featuring an eye-catching red/black or blue/black trim and detailed decals.

• Ready-to-Run
• 60+ MPH (97 km/h) speeds achievable in optimum conditions using a 6S LiPo battery and the include optional speed pinion gear
• Spektrum™ SLT3™ 2.4GHz 3-Channel Radio
• Spektrum™ SR315 Dual Protocol 3-Channel Receiver
• Spektrum™ S652 Digital Servo
• Spektrum™ Firma™ 150A Smart ESC
• Spektrum™ Firma™ 4074 2050Kv Brushless Motor
• Safe-D pinion gears
• EXB front brace compatible top plate
• Stronger chassis design
• Heavy-duty arms front and rear
• Updated rear shock tower geometry
• Large volume waterproof* receiver box
• Anodized aluminum chassis
• Strong composite chassis side pods
• Center body support and brace for maximum durability
• High downforce wing
• Oil-filled adjustable shocks
• Black-anodized aluminum front and rear shock towers
• Durable steel driveshafts throughout
• Heavy-duty drivetrain
• All-metal diff outdrives and gearbox internals
• Never-loose red aluminum servo saver
• Never-pop ball ends
• 4-Bolt center diff removal
• Easy-access sliding motor mount for quick motor removal
• Multi-split spoke wheels
• Durable wheel hubs for increased strength
• Hub nut O-rings
• Multi-terrain dBoots® COPPERHEAD 2™ tires
• Detailed decals
• Body print style in red/black or blue/black
• IC5® connectors (EC5™ compatible)
• 2-year limited warranty (see manual for details)

*For details on waterproof standards, please refer to the product instruction manual
Approximate Assembly Time: No assembly required
Ball Bearings: Full set
Battery: Sold Separately
Body: Painted, decaled and trimmed
Brakes: User programmable
Charger: Sold Separately
Chassis: 0.12" (3mm) 6061-T6 aluminum
Completion Level: Ready-To-Run
Differential: 3-gear
Drivetrain: 4WD
Drive Type: Forward/Brake/Reverse
Final Drive Ratio: 17.92
Front Shock Spring Rate: 6.2lbs/in (1.09N/mm)
Front Track: 18.15" (461mm)
Power Type: Electric
Gear Pitch: 1.0MOD
Ground Clearance: 1.85" (47mm)
Inner Tire / Outer Wheel Diameter: 3.8 in
Internal Gear Ratio: 4.3
Motor Size: 4074
Motor Type: Brushless - Sensorless
Pinion: 12T
Product Height: 7.68" (195 mm)
Product Length: 23.39" (594 mm)
Product Weight: 10.67lb (4.85kg)
Product Width: 18.15" (461 mm)
Radio: Included
Rear Shock Spring Rate: 5.0lbs/in (0.87N/mm)
Rear Track: 18.15" (461mm)
Receiver: Included
Scale: 1/8
Servos: Included
Shock Type: Aluminum body oil-filled adjustable
Speed Control: Included
Spur Gear: 50T
Suspension: Independent
Tire Tread: dBoots COPPERHEAD 2
Tire Type: Multi-terrain
Vehicle Type: Monster Truck
Water-Resistant: Yes
Wheelbase: 14.84" (377mm)
Wheel Hex Size: 17mm
Wheel Type: Five split-spoke monster truck
Wheel Width: 3.3" (81.5mm)
UPDATED CHASSIS DESIGN:
Wider rear section and 3D form introduced in key areas to greatly improve strength.

SAFE-D FIRST:
Input gears are keyed to the drive cups composite sleeves to fortify retention of the drive cup ser screw.

MAXIMUM GRIP:
DBoots® COPPERHEAD 2 tread pattern designed for extreme all-terrain traction and multi-split spoke wheels.

SPEKTRUM® SMART TECHNOLOGY INCLUDED:
FIRMA™ 150A SMART Brushless ESC and FIRMA™ 4074 2050Kv Brushless Motor

OPTIONAL SPEED PINION INCLUDED:
Red anodized motor mount and Mod 1 spur and pinion gears to handle optimum performance.

SPEKTRUM® SLT3® RADIO:
Superb SLT response rate
50% and 75% throttle limited switch - great for beginners
Steering & throttle rate & trim adjustments with throttle and steering reversing
Foam steering wheel grip
Compatible with Tactic Receivers

SPEKTRUM® SR315 RECEIVER:
Dual Protocol - Compatible with SLT and DSMR® 2.4GHz protocol transmitters
Fast reponse rate and outstanding range
No tool binding and protocol switching
SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app)
3-Channels

FIRMA™ 150A SMART Brushless ESC:
Waterproof* and dustproof design
150A, 6S LiPo ready (3S, 4S & 6S LiPo compatible)
Spektrum® SMART Technology
Fitted with reliable IC5® connectors (EC5™ compatible)
Integrated fan for reduced heat during extreme running
High quality 10awg wires
Low voltage cut off and thermal overload protection
User programmable punch, brake, BEC, reverse speed and motor timing settings
*For details on waterproof standards, please refer to the product instruction manual

FIRMA™ 4074 2050Kv Brushless Motor:
2050Kv 4074 size 6S brushless motor
Beautifully etched aluminum can
4-pole construction for smooth and consistent power
4mm gold bullet connectors for reliable and efficient connection
Black anodized aluminum motor can for increased heat dissipation
Super strong 5mm shaft
Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip
