- Overview
Overview

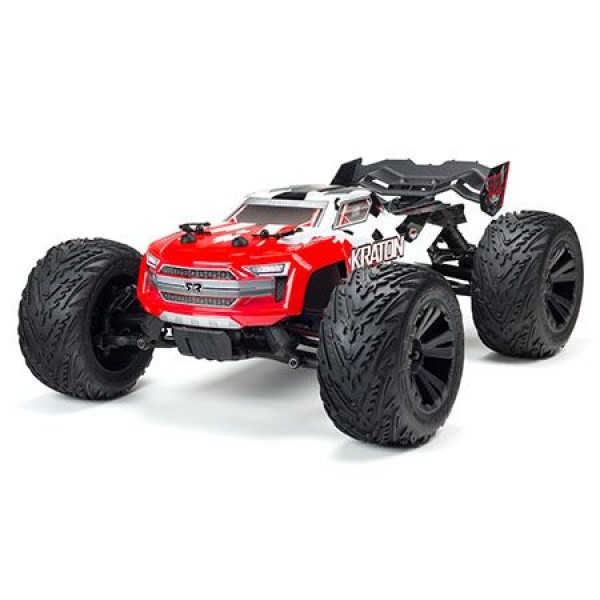

Powered by the BLX120 brushless system, the KRATON™ 4X4 4S BLX is unstoppable on trails, race tracks, and muddy courses. Its 2400Kv brushless motor is matched to an ESC with dual EC5™ connectors for using two 2S LiPo batteries. Differential gears inside the front and rear gearboxes are made of durable metal.
To develop the chassis, ARRMA® engineers started with the proven 4X4 3S platform. They stretched the track width by widening the suspension and drive shafts, and added a center brace along the length of the chassis for maximum durability (it can be removed in just four quick steps when it's time to perform maintenance). The molded 16mm Big Bore shocks include top-loading springs and molded-in shock rod ends to prevent spring loss.
The body has the same aggressive styling as that of the KRATON™ 6S BLX, with a smaller version of its rear wing. There are also many subtle tweaks that give the KRATON™ 4X4 4S BLX a personality all its own. Large, tough wheels hubs and durable 17mm wheel hexes hold standard 3.8" wheels, outfitted with low-profile MINOKAWA LP tires.
Included with the ready-to-run package is a Spektrum™ STX2® 2.4GHz radio with SRX200 waterproof receiver and an ARRMA® ADS-15M metal gear servo. Just add your choice of battery, charger, and "AA" transmitter batteries – and start unleashing ARRMA® monster speed and performance in a whole new size.
Includes:
- (1) ARRMA KRATON™ 4x4 4S BLX Vehicle with
- (1) Spektrum SRX200 Waterproof Receiver (installed)
- (1) ARRMA® ADS-15M Metal Gear Servo (installed)
- (1) ARRMA® 4S-capable BLX120 Electronic Speed Control (installed)
- (1) ARRMA® 4S-capable BLX3668 Brushless Motor (installed)
- (1) Spektrum STX2® Transmitter
- (1) Product Manual
Requires:
- (1) 3S/4S or (2) 2S LiPo battery setup
- (1) Appropriate LiPo balancing charger
- (4) AA batteries for transmitter
features
- ARRMA® speed and toughness
- 4S-capable BLX120 Brushless Power System for 50+ mph speed
- Performance approaching the KRATON™ 6S BLX in a smaller, yet still beast-like setup
- Spektrum™ STX2® 2.4GHz Radio System
- 2-Channel SRX200 waterproof receiver
- Built-in 3-position throttle limiter
- Extended range and interference-free performance
- Throttle/steering reversing
- Throttle/steering travel adjust
- Throttle limiting
- ADS-15M waterproof metal-gear high-torque servo
- 2400Kv brushless motor with large heatsink
- BLX120 ESC with dual EC5™ battery connectors for two 2S LiPo packs
- Lengthened suspension arms and driveshaft for wider track than 3S BLX vehicles
- Center chassis brace for maximum durability
- Metal spur gear and castellated slipper pads
- Enlarged front and rear hubs for added strength
- Durable 17mm aluminum hexes
- 16mm big bore shocks with molded-in shock rod end and top-loading spring
- Front and rear gearboxes with metal internal differential gears
- New wing, wing mounts, and bumpers
- New body mounts
- Low-profile MINOKAWA tires
- ADS-15M metal gear servo
- 2-year limited warranty
Approximate Assembly Time: No assembly requiredSpecs
Ball Bearings: Full set
Batteries: One 3S, two 2S or one 4S hardcase LiPo battery (sold separately)
Body: Molded polycarbonate, trimmed and painted with decals applied
Bushing Material: Metal
Charger: Compatible with selected LiPo battery (sold separately)
Chassis: Molded composite
Completion Level: Ready-To-Run
Differential: Oil-filled metal gear
Drivetrain: 4WD
Final Drive Ratio: 12.48
Front Shock Spring Rate: 0.8N/mm
Gear Pitch: 0.8 Module
Ground Clearance: 2.28" (58mm)
Height: 7.56" (192mm)
Internal Gear Ratio: 2.85:1
Length: 20.79" (528mm)
Max Battery Dimensions: 6.50 x 2.01 x 1.89" (165 x 51 x 48mm)
Motor Size: 3668
Motor Type: Non-sensored brushless, 2400Kv
Pinion: 13T
Radio: Spektrum STX2 2-channel included
Rear Shock Spring Rate: 0.7N/mm
Servos: Metal gear steering servo
Shock Type: Oil-filled, coil over spring
Size/Scale: 1/10
Speed Control: BLX120 w/dual EC5 battery connectors for two 2S LiPo packs
Spur Gear: 57T
Suspension: Independent
Tire Diameter: 6.1" (155mm)
Tire Tread: dBoots Minokawa LP
Vehicle Type: Monster Truck
Water-Resistant: Yes
Weight: 7.99 lbs (3.63 kg)
Wheel Diameter: 3.82" (97mm)
Wheel Hex Size: 17mm Hex
Wheel Type: MT
Wheelbase: 12.87" (327mm)
Width: 15.55" (395mm)Product Videos
- Specs
Product Specifications
Part Number ARA102690 Scale 1/10 Drivetrain 4WD Kit Type RTR Approximate Assembly Time No assembly required Ball Bearings Full set Batteries One 3S, two 2S or one 4S hardcase LiPo battery (sold separately) Body Molded polycarbonate, trimmed and painted with decals applied Bushing Material Metal Charger Compatible with selected LiPo battery (sold separately) Chassis Molded composite Completion Level Ready-To-Run Differential Oil-filled metal gear Drivetrain 4WD Final Drive Ratio 12.48 Front Shock Spring Rate 0.8N/mm Gear Pitch 0.8 Module Ground Clearance 2.28" (58mm) Height 7.56" (192mm) Internal Gear Ratio 2.85:1 Length 20.79" (528mm) Max Battery Dimensions 6.50 x 2.01 x 1.89" (165 x 51 x 48mm) Motor Size 3668 Motor Type Non-sensored brushless, 2400Kv Pinion 13T Radio Spektrum STX2 2-channel included Rear Shock Spring Rate 0.7N/mm Servos Metal gear steering servo Shock Type Oil-filled, coil over spring Size/Scale 1/10 Speed Control BLX120 w/dual EC5 battery connectors for two 2S LiPo packs Spur Gear 57T Suspension Independent Tire Diameter 6.1" (155mm) Tire Tread dBoots Minokawa LP Vehicle Type Monster Truck Water-Resistant Yes Weight 7.99 lbs (3.63 kg) Wheel Diameter 3.82" (97mm) Wheel Hex Size 17mm Hex Wheel Type MT Wheelbase 12.87" (327mm) Width 15.55" (395mm) - Reviews
