- Overview
Overview

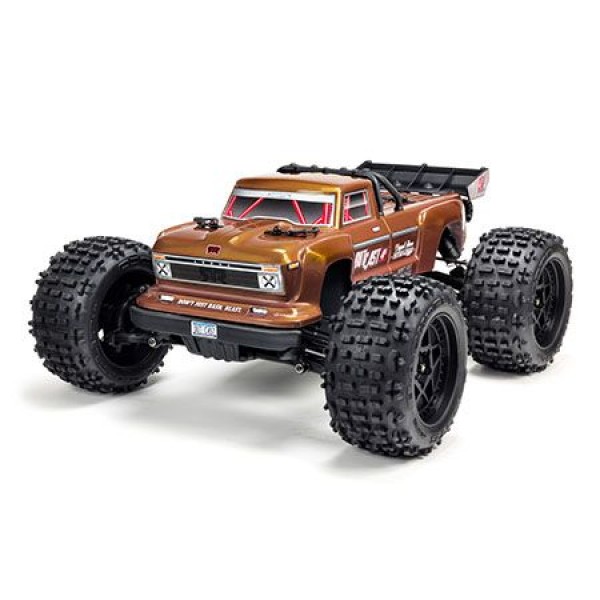

The OUTCAST™ 4X4 4S BLX joins the ARRMA® brushless lineup as the perfect middle ground between 3S BLX vehicles and all-out 6S BLX machines. It delivers affordable, no-holds-barred stunt performance for brushed bashers looking to upgrade and anyone who wants ARRMA® toughness and 50+ mph speed!
At home on trails, over muddy courses, and at skate parks and race tracks, the OUTCAST™ 4X4 4S BLX shares the low, lean look of its 6S BLX forerunner in a scaled-down size. Power comes from the ARRMA® 4S-capable BLX120 brushless system – which features a 2400Kv brushless motor and ESC fitted with dual EC5™ connectors for using two 2S LiPo battery packs. Differential gears inside the front and rear gearboxes are made of durable metal.
Building from the successful 4X4 3S BLX platform, ARRMA® designers stretched the track width for the OUTCAST™ 4X4 4S BLX by widening the suspension and drive shafts. A center brace added along the length of the chassis provides maximum durability and can be removed in just four quick steps when it's time to perform maintenance. The molded 16mm Big Bore shocks include top-loading springs and molded-in shock rod ends to prevent spring loss. The large, tough wheels hubs and durable 17mm wheel hexes hold standard 3.8" wheels, outfitted with low-profile BACKFLIP tires. The wing and bumpers follow the look of the OUTCAST™ 6S BLX, with new wing and body mounts.
The ready-to-run package comes complete with a Spektrum™ STX2® 2.4GHz radio with SRX200 waterproof receiver and an ARRMA® ADS-15M metal gear servo. Add your choice of battery, charger, and "AA" transmitter batteries, and start making your own RC mayhem!Includes:
- (1) ARRMA OUTCAST™ 4x4 4S BLX Vehicle with
- (1) Spektrum SRX200 Waterproof Receiver (installed)
- (1) ARRMA® ADS-15M Metal Gear Servo (installed)
- (1) ARRMA® 4S-capable BLX120 Electronic Speed Control (installed)
- (1) ARRMA® 4S-capable BLX3668 Brushless Motor (installed)
- (1) Spektrum STX2® Transmitter
- (1) Product Manual
Requires:
- (1) 3S/4S or (2) 2S LiPo battery setup
- (1) Appropriate LiPo balancing charger
- (4) AA batteries for transmitter
features
- ARRMA® speed and toughness
- 4S-capable BLX120 Brushless Power System for 50+ mph speed
- Performance approaching the OUTCAST™ 6S BLX 4X4
- Spektrum™ STX2® 2.4GHz Radio System
- 2-Channel SRX200 waterproof receiver *
- Built-in 3-position throttle limiter
- Extended range and interference-free performance
- Throttle/steering reversing
- Throttle/steering travel adjust
- Throttle limiting
- ADS-15M waterproof metal gear servo *
- 2400Kv Brushless motor with large heatsink
- BLX120 ESC with dual EC5™ battery connectors for two 2S LiPo packs
- Lengthened suspension arms and driveshaft for wider track than 3S BLX vehicles
- Center chassis brace for maximum durability
- Metal spur gear and castellated slipper pads
- Enlarged front and rear hubs for added strength
- Durable 17mm hexes
- 16mm Big Bore shocks with molded-in shock rod end and top-loading spring
- Front and rear gearboxes with metal internal differential gears
- New wing, wing mounts, and bumpers
- New body mounts
- Low-profile BACKFLIP tires
- ADS-15M metal gear servo
- 2-year limited warranty
Approximate Assembly Time: No assembly requiredSpecs
Ball Bearings: Transmission only
Batteries: One 3S, two 2S or one 4S hardcase LiPo battery (sold separately)
Body: Trimmed and painted molded polycarbonate
Bushing Material: Metal
Charger: Compatible with selected LiPo battery (sold separately
Chassis: Molded composite
Completion Level: Ready-To-Run
Differential: Oil-filled metal gear
Drivetrain: 4WD
Final Drive Ratio: 12.48
Front Shock Spring Rate: 0.8N/mm
Gear Pitch: 0.8 Module
Ground Clearance: 2.52" (64mm)
Height: 8.43" (214mm)
Internal Gear Ratio: 2.85:1
Length: 19.17" (487mm)
Max Battery Dimensions: 6.14 x 2.00 x 1.89" (156 x 51 x 48mm)
Motor Size: 3668
Motor Type: Non-sensored brushless, 2400Kv
Pinion: 13T
Radio: Spektrum STX2 2-channel included
Rear Shock Spring Rate: 0.7N/mm
Servos: Metal gear steering servo
Shock Type: Oil-filled, coil over spring
Size/Scale: 1/10
Speed Control: BLX120 w/dual EC5 battery connectors for two 2S LiPo packs
Spur Gear: 57T
Suspension: Independent
Tire Diameter: 6.06" (154mm)
Tire Tread: dBoots BACKFLIP LP
Vehicle Type: Monster Truck
Water-Resistant: Yes
Weight: 8.25lbs (3.75kg)
Wheel Diameter: 3.82" (97mm)
Wheel Hex Size: 17mm Hex
Wheel Type: MT
Wheelbase: 11.3" (287mm)
Width: 15.83" (402mm)Product Videos
- Specs
Product Specifications
Part Number ARA102692 Scale 1/10 Drivetrain 4WD Kit Type RTR Approximate Assembly Time No assembly required Ball Bearings Transmission only Batteries One 3S, two 2S or one 4S hardcase LiPo battery (sold separately) Body Trimmed and painted molded polycarbonate Bushing Material Metal Charger Compatible with selected LiPo battery (sold separately Chassis Molded composite Completion Level Ready-To-Run Differential Oil-filled metal gear Drivetrain 4WD Final Drive Ratio 12.48 Front Shock Spring Rate 0.8N/mm Gear Pitch 0.8 Module Ground Clearance 2.52" (64mm) Height 8.43" (214mm) Internal Gear Ratio 2.85:1 Length 19.17" (487mm) Max Battery Dimensions 6.14 x 2.00 x 1.89" (156 x 51 x 48mm) Motor Size 3668 Motor Type Non-sensored brushless, 2400Kv Pinion 13T Radio Spektrum STX2 2-channel included Rear Shock Spring Rate 0.7N/mm Servos Metal gear steering servo Shock Type Oil-filled, coil over spring Size/Scale 1/10 Speed Control BLX120 w/dual EC5 battery connectors for two 2S LiPo packs Spur Gear 57T Suspension Independent Tire Diameter 6.06" (154mm) Tire Tread dBoots BACKFLIP LP Vehicle Type Monster Truck Water-Resistant Yes Weight 8.25lbs (3.75kg) Wheel Diameter 3.82" (97mm) Wheel Hex Size 17mm Hex Wheel Type MT Wheelbase 11.3" (287mm) Width 15.83" (402mm) - Reviews
