- Overview
Overview

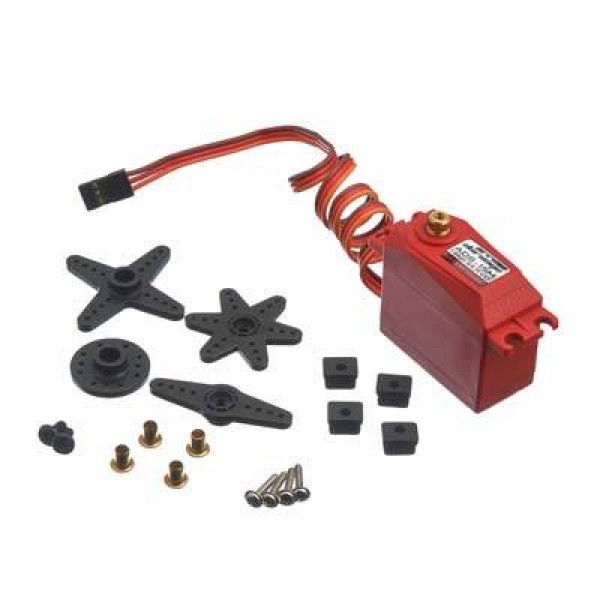

The ADS-15M V2 Servo is designed to give you fast and precise steering. Resilient to the elements and built from hard-wearing materials.
Case: Red, Water-proof & dust-proofSpecs
Bearing: Dual ball bearing
Connector: ‘Futaba style’ 3 pin connector
Gears: Metal
Spline: 25 Tooth
Dimensions: 40mm x 38mm x 20mm (Excluding mounting tabs), Industry Standard size
Wire length: 300mm
Torque: ADS-15M: 15kg-cm (208oz-inch) at 7.2V, 14kg-cm (195oz-in) at 6.0V
Speed: 0.14 sec/60 deg at 7.2V, 0.16 sec/60 deg at 6.0V
Signal: Analogue- Specs
Product Specifications
Part Number AR390139 Case Red, Water-proof & dust-proof Bearing Dual ball bearing Connector ‘Futaba style’ 3 pin connector Gears Metal Spline 25 Tooth Dimensions 40mm x 38mm x 20mm (Excluding mounting tabs), Industry Standard size Wire length 300mm Torque ADS-15M: 15kg-cm (208oz-inch) at 7.2V, 14kg-cm (195oz-in) at 6.0V Speed 0.14 sec/60 deg at 7.2V, 0.16 sec/60 deg at 6.0V Signal Analogue - Reviews
