- Overview

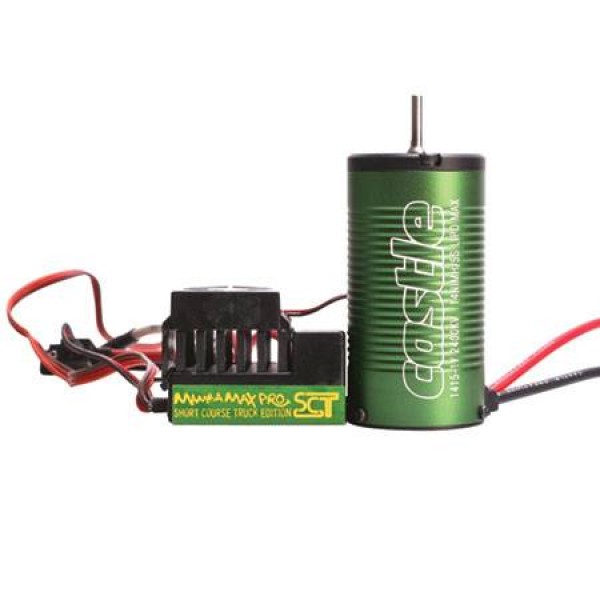

This is the Castle Creations 1/10 Mamba Max Pro Speed Control System with 2400Kv Sensorless, Brushless Motor.
Includes:
- Castle Creations Mamba Max Pro Electronic Speed Control
- 2400kV motor
Notes:
Not for use in 1/10 scale monster trucks
features
- Rated for 4S maximum input
- Suitable for use with stock gearing on AWD (all wheel drive) vehicles in basher applications
- Switching BEC provides power for servo and receiver all the way to 6S
- Profiles can be custom designed on a PC with the Castle Link PC programming software (not included, requires the Quick Field Programmer, CSEM6300 and the Castle Link Quick Connect, CSEM7900)
- Infinitely adjustable throttle and brake curves with timing advance
- Punch Control allows dialing in horsepower where needed
- Brake Strength allows straight tracking under hard braking
- Drag Brake helps entry into corners
- Start Power for smooth launches
- Four pole motor
- Replaces 550 size motors
- Powerful 2400kV motor
- Electronic Speed Control:Specs
Cells: 6-12 NiCd/NiMH, 3-4 cell LiPo
Brake: Proportional
Reversible: Yes, with lockout
Low Voltage Cut-off: Programmable
Size: 45.5mm x 36.5 x 21.5mm (1.79"x1.44"x0.85")
Weight: 81g (2.8oz)
- 2400Kv Motor:
Input Voltage: Max of 4S LiPo (14.8V) or 14 cell NiCd/NiMH (16.8V)
Length: 2.7" (69.5mm)
Diameter: 1.4" (36mm)
Weight: 10.6oz (301.5g)
Shaft Diameter: 1/8" (3.715mm)
Connector Type: 4mm bullet type connector
Motor Wire Length: 4" leads (101mm)- Specs
Product Specifications
Part Number CSE010009100 - Electronic Speed Control Cells 6-12 NiCd/NiMH, 3-4 cell LiPo Brake Proportional Reversible Yes, with lockout Low Voltage Cut-off Programmable Size 45.5mm x 36.5 x 21.5mm (1.79"x1.44"x0.85") Weight 10.6oz (301.5g) - 2400Kv Motor Input Voltage Max of 4S LiPo (14.8V) or 14 cell NiCd/NiMH (16.8V) Length 2.7" (69.5mm) Diameter 1.4" (36mm) Shaft Diameter 1/8" (3.715mm) Connector Type 4mm bullet type connector Motor Wire Length 4" leads (101mm) - Reviews
