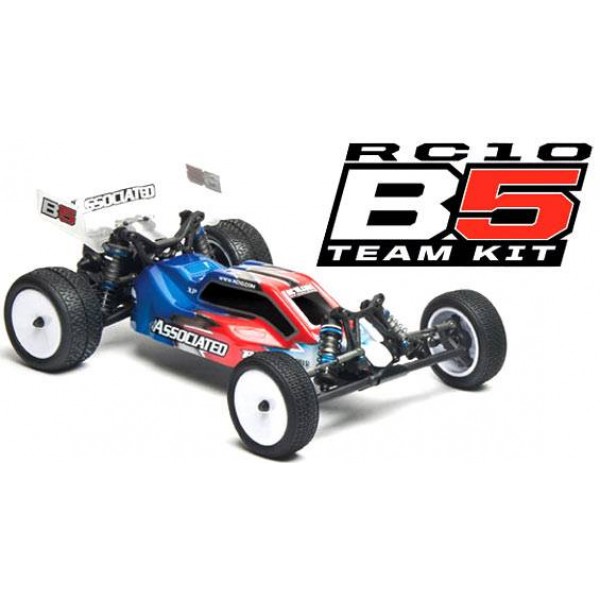

Associated 1/10 RC10B5 Team Kit

Chassis: Narrow composite tub type, fits ROAR approved 2S LiPo packs
in saddle, short, and square configurations
Drive: Rear wheel
Transmission: New design has ball bearings, stronger gears, VTS
slipper clutch
Differential: 14 carbide ball type with lightweight outdrives
Body: B5 clear
Shocks: Factory Team V2 12mm Big Bore hard anodized aluminum, 3mm
shafts, and updated O-rings for improved smoothness
Front Suspension: Heavy duty steering and caster blocks, with insert
system for easy caster and trailing axle adjustments, adjustable
mount angle kick-up options of 25° and 30°, heavy-duty lubricated
ball cups, and optimized ball studs for maximum suspension travel
without binding
Steering: Full ball bearing with horizontal ball studs for finer
Ackermann adjustments, Ackermann describes the effect of the inner
front wheel turning faster that the outer front wheel during turns
Wheels: Plastic white dish type front, 0.94" (24mm) wide, 2.4"
(61mm) diameter, rear 1.5" (38mm) wide, 2.4" (61mm) diameter
12mm hex
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle

Associated RC10 B5 Factory Team off-road buggy kit, body with wing
decals, wheels, diff lube, shock oil and instruction manual

Radio: Two-channel with high-speed servo
Radio Batteries: (8) AA size
Tires: 1/10 scale buggy for 2.2" wheels
Pinion Gear: 48P, number of teeth to be determined by motor
Motor: 540 size for buggy applications
The DuraTrax Element 3900kV Brushless System (DTXC3122) is an ideal,
affordable motor and ESC for this vehicle.
Battery: 7.4V 2S LiPo, or 6.0V LiFe (saddle, shorty, or square)
Battery Charger: To match selected battery
Building and track equipment

Vehicle;
Length: 15.1" (385mm)
Wheelbase: 11 - 11.1" (279 - 281mm)
Body;
Length: 10.7" (272mm)
Width: 4.2" (108mm)
Height: 2.6" (67mm)
