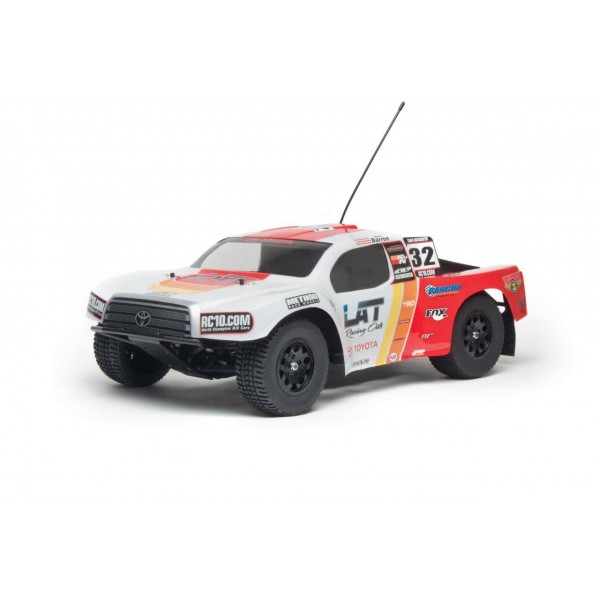

Associated 1/10 SC10 RS Toyota Racing RTR

Associated 1/10 SC10 RS Toyota Racing RTR

LOADING IMAGES

$299.95

[ASC7054]

Be the first to review this product

This is the brushless powered Team Associated SC10 RS Short Course Race Truck FEATURES: Reedy 3300kV brushless motor, XP SC500 BL ESC w/LiPo cutoff, 2.4GHz radio w/metal gear steering servo, V2 aluminum bodied shocks, trimmed & painted body, rubber sealed ball bearings REQUIRES: 6 AA batteries, LiPo battery & charger, bldg & track equipment

Availability: Please call for availability
We might still have one laying around..

Add to Wishlist

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.

Overview

FEATURES

Chassis: Molded composite low CG design with side nerf bars,
hinged battery hold down strap fits NiMH and LiPo battery packs
Drive: Rear wheel with steel rear dogbone drive shafts
Motor: Associated Reedy 3300kV brushless
Radio: Associated XP2G 2.4GHz 3-channel system with the DS1903 metal
gear steering servo
ESC: Associated XP SC600-BL brushless compatible with LiPo cutoff
Shocks: V2 oil-filled with blue aluminum bodies
Body: 0.040" (1mm) thick painted and trimmed with Toyota Racing Body
Trim Scheme
Differential: Sealed, planetary gear
Spur Gear: 87 tooth
Slipper Clutch: Dual sided, externally adjustable
Receiver Box: Enclosed water resistant design
Battery Strap: Composite hold down strap fits NiMH and LiPo battery
packs
Wheels: KMC style, 3" (76mm) diameter, 1.6" (41mm) wide, black in
color
Tires: Multi terrain scale with reinforced sidewalls, 4.25" (108mm)
diameter, 1.7" (43mm) wide
Caster: Adjustable, caster/toe-in refers to the angle of the
suspension when viewed from the side of the car in relation to the
chassis, includes Factory Team Arm Mounts (ASCC7487) that allow
four choices of rear toe-in for different track conditions
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Bumpers: Front and rear with functional rear rubber mud flaps
Ball Bearings: 14 rubber sealed
Suspension: Fully adjustable with steel turnbuckles
Steering: Angled bellcrank "coplanar" steering with integral servo
saver

INCLUDES

SC10 RS Short Course Race Truck from Associated with tires, wheels,
ESC, painted body, brushless motor, 2.4GHz radio, instruction
manual

REQUIRES Transmitter Batteries: Six AA-size
Battery: 2S LiPo with Deans connector or 6-cell NiMH stick pack
Battery Charger: To match selected battery
Building and track equipment

SPECIFICATIONS

Vehicle-
Length: 21.6" (550mm)
Width: 11.5" (293mm)
Track: 9.6" (245mm)
Weight: 4.6lbs (2080g)
Wheelbase: 12.9" (327mm)
Internal Gear Ratio: 2.6:1
Body-
Length 21.6" (550mm)
Width 11.5" (293mm) at front fenders, widest point
8.8" (224mm) at center section, narrowest point
Height: 6" (153mm)
