- Overview
FEATURES Chassis: Molded composite low CG design with side nerf bars,
hinged battery hold down strap fits NiMH and LiPo battery packs
Drive: Rear wheel with steel rear dogbone drive shafts
Motor: Associated Reedy 3300kV brushless
Radio: Associated XP2G 2.4GHz 2-channel system with metal gear
steering servo
ESC: Associated XP SC600-BL brushless compatible with LiPo cutoff
Shocks: V2 oil-filled with blue aluminum bodies
Body: 0.040" (1mm) thick painted and trimmed
Battery: Reedy WolfPack 7.4V 3300mAh 30C LiPo with Dean's connector,
ASCC0751
_ Battery Charger: Reedy 324-S AC Powered 2S-4S LiPo/LiFe Balance
Charger, ASCP7201
Spur Gear: 87 tooth
Slipper Clutch: Dual sided, externally adjustable
Wheels: KMC style, 3" (76mm) diameter, 1.6" (41mm) wide, black in
color
Tires: Multi terrain scale with reinforced sidewalls, 4.25" (108mm)
diameter, 1.7" (43mm) wide
Caster: Adjustable, caster/toe-in refers to the angle of the
suspension when viewed from the side of the car in relation to the
chassis, includes Factory Team Arm Mounts (ASCC7487) that allow
four choices of rear toe-in for different track conditions
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Bumpers: Front and rear with functional rear rubber mud flaps
Ball Bearings: 14 rubber sealed
Suspension: Fully adjustable with steel turnbuckles
Steering: Angled bellcrank "coplanar" steering with integral servo

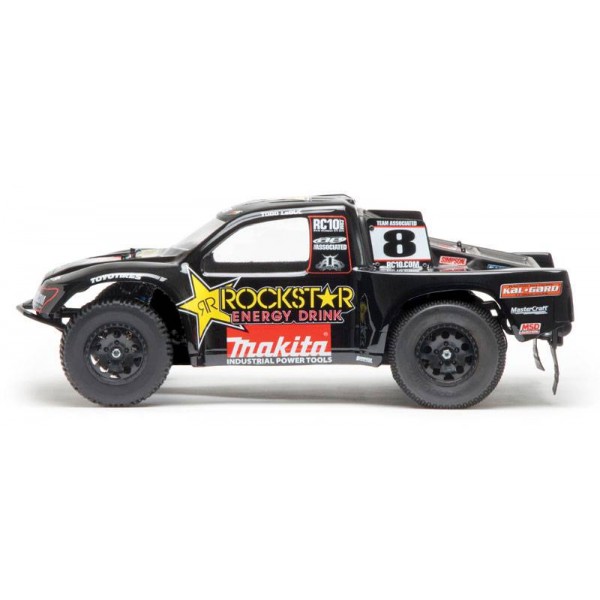

saverINCLUDES SC10 RS Short Course Race Truck from Associated with tires, wheels,
ESC, painted body, brushless motor, 2.4GHz radio, instruction
manual, LiPo battery and chargerREQUIREMENTS Transmitter Batteries: Six AA
Building and track equipmentSPECIFICATIONS Vehicle-
Length: 21.6" (550mm)
Width: 11.5" (293mm)
Track: 9.6" (245mm)
Weight: 4.6lbs (2080g)
Wheelbase: 12.9" (327mm)
Internal Gear Ratio: 2.6:1
Body-
Length 21.6" (550mm)
Width 11.5" (293mm) at front fenders, widest point
8.8" (224mm) at center section, narrowest point
Height: 6" (153mm)- Specs
Product Specifications
Part Number ASC7049C Scale 1/10 Drivetrain 2WD Kit Type RTR - Reviews
