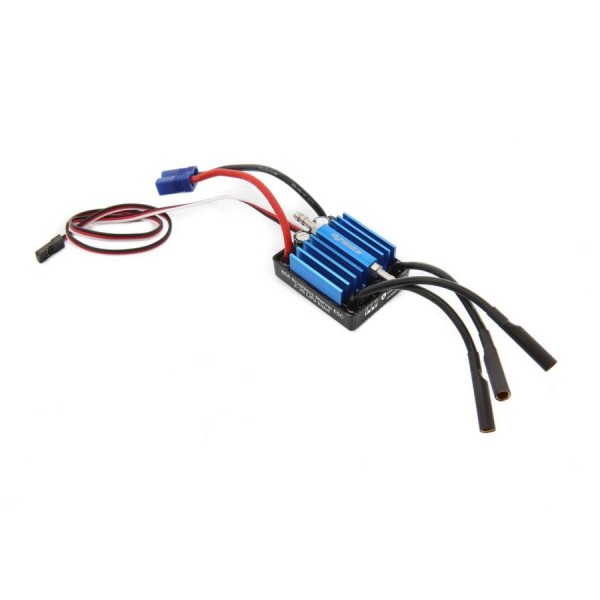

Dynamite 60A Brushless Marine ESC 2-3S


LOADING IMAGES
Dynamite (DYN) Logo Dynamite 60A Brushless Marine ESC 2-3S
$69.99
Dynamite part #DYNM3865, 60A Brushless Marine ESC 2-3S

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Dynamite, known for it’s performance oriented, value priced aftermarket RC parts, accessories and electronics introduces its lineup of marine electronic speed controls designed specifically high performance marine applications. OEM for most Pro Boat models, Dynamite’s lineup of marine ESC’s offer users with speed controls engineered to meet the performance demands of today’s high speed RC powerboats. Available in varius configurations, each speed control comes built for complete water cooling and were designed to easily handle the power delivered from today’s high output Li-Po batteries. In addition, each ESC comes pre-wired with a NiMH/Li-Po switch providing an easy method of selecting NiMH or Li-Po battery types. Additional programming is easily managed through the optional LED program card.

Features:

  • Built in switch allows for easy change of battery chemistry type
  • 14awg wires
  • Large 4mm bullet brushless motor connectors
  • Pre-wired with high-current EC3 connectors
  • 60A single (not dual) battery configuration

Specs:

  • Auto Cutoff: Yes
  • BEC: Yes
  • BEC Continous Current: 2A
  • BEC Type: Linear
  • BEC Voltage: 6V
  • Battery Connector: EC3
  • Battery Input Lead: 3.25"
  • Brakes: Yes
  • Forward: Yes
  • Height: 1 in (25.6mm)
  • Input Voltage: 2S-3S (7.4V-11.1V) Li-Po; 6C-9C (7.2V-10.8V) Ni-MH/Ni-Cd
  • Length: 2.4 in (60.5mm)
  • Low-Voltage Cutoff Programmable: Yes
  • Maximum Burst Current: 360A
  • Maximum Continuous Current: 60A
  • Motor Connector: 4mm Bullet
  • Overload Protection: Yes
  • Reverse: Yes
  • Sensored: No
  • Weight: 3.3 oz.(93 g)
  • Width: 1.5 in (38.5mm)
Specs

Product Specifications

Part NumberDYNM3865
