DS1015 Hi Torgue/Hi Speed Digital Servo


LOADING IMAGES
Team Associated (ASC) Logo DS1015 Hi Torgue/Hi Speed Digital Servo
$94.95

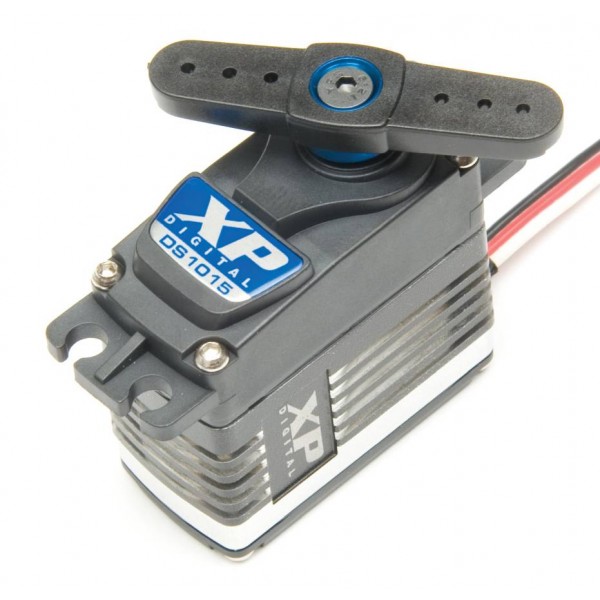

This is a Team Associated part #29167, DS1015 Hi Torque/Hi Speed Digital Servo

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

Team Associated's XP Digital Servos feature many enhancements that improve vehicle control and on-track performance. Equipped with an all-new ultra-precise metal gear and an advanced microprocessor, the XP Digital Servo provides precise outputs and ultra-fast signal response. The state-of-the-art aluminum heat sink mid case lowers operating temperatures for fade-free performance.

features

  • Water and dust resistant
  • JR type connector
  • Aluminum heat sink case
  • Coreless motor
  • Equipped with ultra-precise metal gears
  • Advanced microprocessor that processes signals faster and with more precision
  • Advanced case design enhances structural integrity
  • Higher holding power with fewer angular errors
  • Superior torque output with low current consumption

Specs

Dim. (L x W x H) mm: 41.8 x 20.6 x 39.6
Weight (g/oz): 66 / 2.328
Torque (Kg-cm/oz-in) @ 6V: 14.5 / 201.4
Transit Time (sec/60deg) @ 6V: 0.108
Voltage Range: 4.8 - 6V
Spline: 25
Specs

Product Specifications

Part NumberASC29167
Dim. (L x W x H) mm41.8 x 20.6 x 39.6
Weight (g/oz)66 / 2.328
Torque (Kg-cm/oz-in) @ 6V14.5 / 201.4
Transit Time (sec/60deg) @ 6V0.108
Voltage Range4.8 - 6V
Spline25
