- Overview
FEATURES Chassis: Plastic TVP (twin vertical plate)
Drive: Four wheel shaft
Brushless Motor: HPI Flux Vektor 4000 with aluminum motor plate
Radio: 2.4GHz with SF10W waterproof steering servo
Electronic Speed Control: HPI Flux Vapor Pro with reverse and
cooling fan, programmable with optional Programming Kit (HPIC0573),
not included
Transmission: All metal gears running on rubber-sealed ball bearings
Differential: Equipped with four machined super heavy duty bevel
gears
Slipper Clutch: Dual pad
Pinion Gear: Constructed of steel 28 tooth, 48 pitch
Drive Gear (spur gear): 49T
Wheels: HPI Warlock, chrome finish, width: 2.2" (56mm), 2.2" (56mm)
diameter
Tires: GT-2 on/off-road with blocky tread pattern and heavy-duty
sidewall teeth, 3.93" (100mm) diameter, 2.3" (60mm) wide
Shocks: Plastic bodied, oil filled
Caster: Adjustable front and rear toe-in, caster/toe-in refers to the
angle of the front suspension when viewed from the side of the car
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when viewed from front or behind vehicle
Body: Trimmed and painted GT2XS
Warranty: Two year limited warranty through HPI beginning at date of

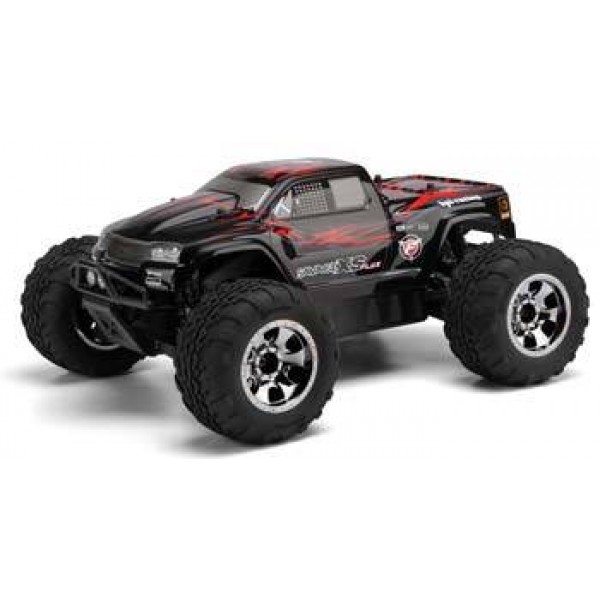

purchase. Warranty valid only in the USA, Canada and South AmericaINCLUDES Assembled HPI Savage Flux Mini Monster Truck with Flux Vektor 4000
Brushless Motor, Vapor Pro ESC, 2.4GHz Radio System, SF-10W
Waterproof Steering Servo, Painted & Trimmed Body and Instruction
ManualREQUIREMENTS AA Batteries: Eight for transmitter
Battery: 2S or 3S LiPo
Battery Charger: LiPo compatible
Building and track equipmentSPECIFICATIONS Vehicle-
Length: 14.1" (360mm)
Width: 11" (280mm)
Wheelbase: 8.8" (225mm)
Body-
Length: 13" (330mm)
Width: 5.7" (146mm) at widest point
Height: 3.7 (93mm)- Specs
Product Specifications
Part Number HPI106571 Drivetrain 4WD Kit Type RTR - Reviews
