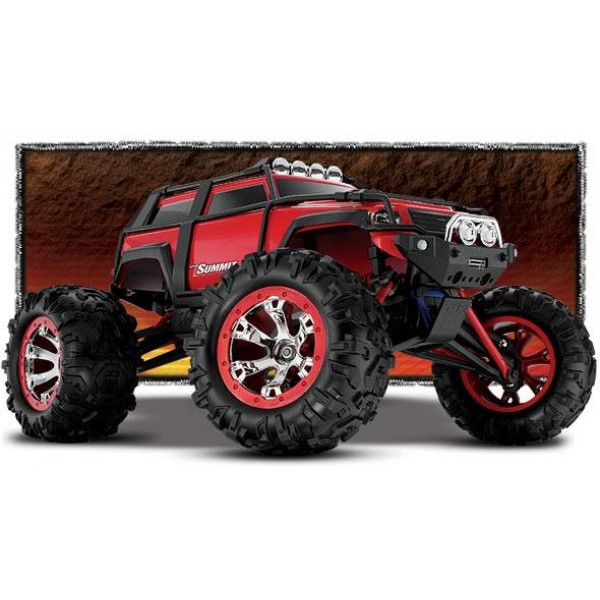

Summit VXL 1/16-Scale 4WD Electric Extreme Terrain Monster Truck

FEATURES:

Chassis: Nylon composite construction 0.08" (2mm) thick monocoque type
Drive: Four wheel
Radio: Traxxas TQ 2.4GHz high output with Traxxas Link automatic model recognition, and waterproof micro steering servo
Electronic Speed Control: Traxxas VXL-3m waterproof, with high- current connector, training mode, reverse and low voltage detection for use with 2S and 3S LiPo packs
Motor: Traxxas Velineon 380 brushless, 8 turn 4000kV with Neodymium magnets, sintered rotor and high RPM ball bearings, 3.5mm gold plated bullet connectors
Spur Gear: 45 tooth
Pinion Gear: 16 tooth 48 pitch
Battery: One Traxxas Power Cell 1200mAh 6-cell NiMH w/high current connector, and iD Auto Battery Identification that allows Traxxas iD equipped chargers to automatically set and optimize charge settings dual NiMH battery capability (extra battery and series adapter not included and must be purchased separately) Vehicle is also compatible with one 2S or 3S LiPo pack (not included) LiPo mode on ESC must be selected.
**NOTE the ESC and motor CANNOT handle dual LiPos, if using dual batteries, both must be NiMH.**
Battery Charger: 2 amp DC powered fast charger
Body: Painted and trimmed with applied decals
Bumpers: Front and rear, composite construction
Shocks: GTR oil filled
Suspension: Revo-spec rocker actuated long travel inboard type with telescoping universal joint shafts
Transmission: Single speed ball bearing equipped with adjustable slipper clutch
Differentials: Sealed silicone filled planetary steel bevel gears
Ball Bearings: Rubber sealed
Caster: Non-adjustable
Camber: Adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
Tires: Multi terrain, with large angular lugs and foam inserts
Wheels: 2.2" (56mm) diameter Geode, chrome finish with painted beadlock style rims, standard size 12mm hex
Steering: Bellcrank with spring loaded servo protection

INCLUDES:

RTR Traxxas Summit VXL Monster Truck with TQ 2.4GHz 2-ch radio, micro steering servo, ESC, painted body, 6-cell battery, charger, brushless motor and instruction manual

REQUIRES:

AA Cells: Four for transmitter

SPECS:

Vehicle -
Length: 12.6" (320mm)
Height: 7.48" (190mm)
Front Track: 10.43" (265mm)
Rear Track: 10.63" (270mm) distance between outer edges of wheels side-to-side
Weight: 44oz (1.24kg)
Wheelbase: 8.425" (214mm)
Ground Clearance: 2.75" (70mm)
Internal Gear Ratio: 5.04:1 (reversed input: 9.72:1)
Overall Drive Ratio: 15.75 (stock, out of box)
Body -
Length: 11.4" (291mm)
Width: 5" (127mm)
Height: 3.6" (92mm) measured at light bar

COMMENTS:

If wanting to upgrade to a battery with a slightly higher mAh rating, the DuraTrax 1600mAh NiMH 7.2V 6-Cell Battery (DTXC2192) is an ideal choice.
The ball bearings in the Traxxas Summit VXL are rubber sealed.
Available in the following body colors;
Blue, TRAD86BB White, TRAD86WW
Red, TRAD86RR Yellow, TRAD86YY
